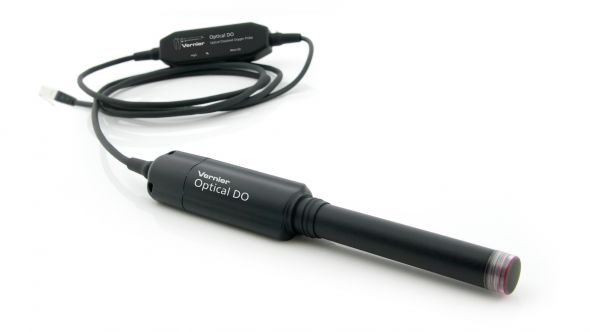

Optical dissolved O2 (DO) probe uses luminescence technology to provide fast, easy and accurate measurements of dissolved oxygen in solutions. This probe is ideal for both laboratory and field measurements of dissolved O2. It requires no warm up time, infrequent calibration, no filling solution and no stirring. The optical DO probe S122 is the key component of our Q-Box AQUA Aquatic Respirometry Package and Qubit DO Control Systems. The probe has built in temperature and pressure compensation and can record DO in % saturation or mg/L.
The optical DO probe can be submerged to 5ft in water when used with the optional guard that will protect it and weigh it down. We recommend the use of the DO probe with C610 LabQuest Mini data interface and C901 LoggerPro software or for stand alone use with C605 Labquest 2 data interface system.
- Luminescence technology
- Easy to use
- No warm up required
- Infrequent calibration
- No filling solutions required
- No stirring required
Applications
- Aquatic respiration measurements
- Environmental monitoring
- Aquaculture research
- Aquatic control
| Range | 0 to 20 mg/L (or ppm), 0 to 100% |
| Accuracy | ±0.1 mg/L below 10 mg/L, ±0.2 mg/L above 10 mg/L, ±1% of reading |
| Response Time | 90% of final reading in 40 second |
| 12-bit Resolution | 0.006 mg/L |
| Temperature Compensation | automatic from 0–50°C |
| Pressure Compensation | automatic from 228 mmHg to 1519 mmHg |
| Minimum sample flow | none |
| Warranty | 1 year |
Robin Anne Bessemer et al. Cardiorespiratory toxicity of environmentally relevant zinc oxide nanoparticles in the freshwater fish Catostomus commersonii. Nanotoxicology, (Nov 2014) pp1743-5404
