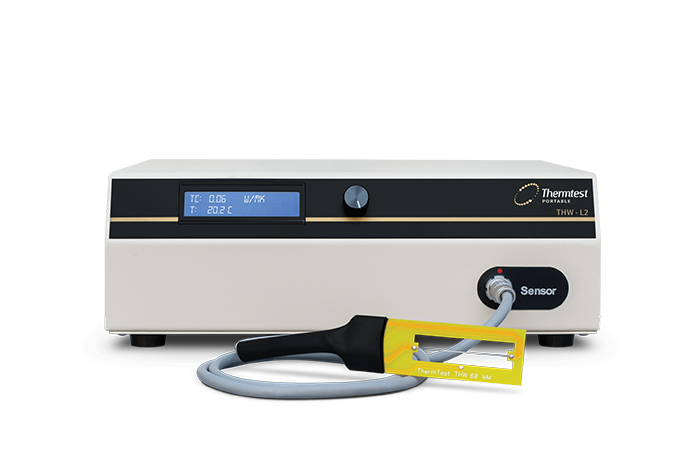

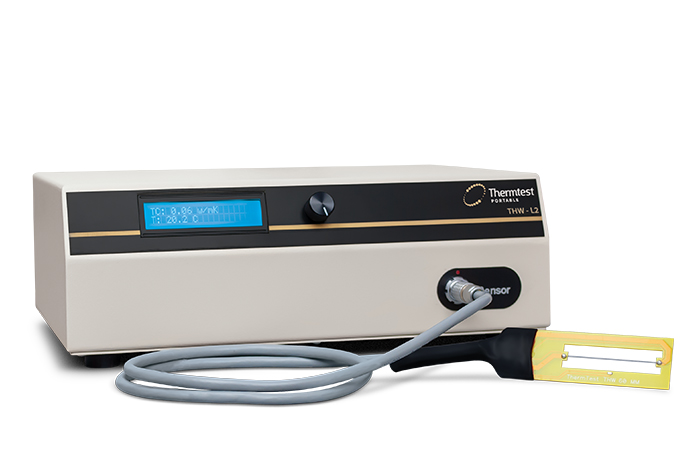

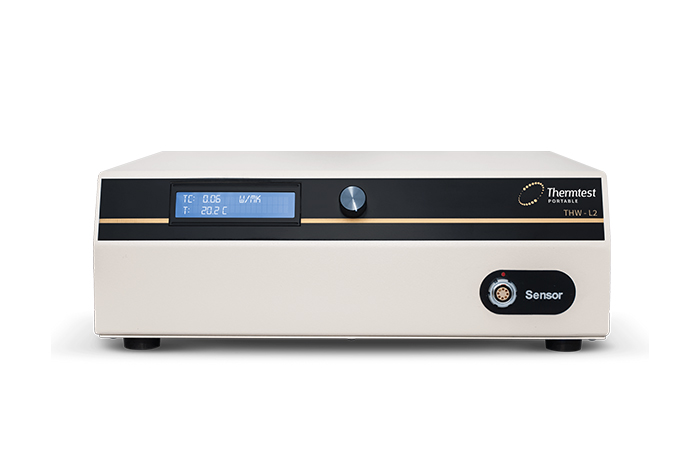

Transient Hot-Wire THW-L2
The Transient Hot-Wire (THW-L2) is a portable thermal conductivity meter for measurement of liquids.
Best For Liquids
The Transient Hot Wire (THW-L2) is a portable liquid thermal conductivity meter for direct determination of the thermal conductivity of liquids and pastes in accordance with ASTM D7896-19. The THW-L2 was designed with speed and operational simplicity in mind. With a single measurement of less than 2 seconds in duration, small volumes of liquids and pastes can be accurately and precisely measured for thermal conductivity. The THW-L2 utilizes a non-stationary measurement approach and rapid test times to limit convective effects for samples with a wide range of viscosities.
| Material | Liquids & Pastes |
|---|---|
| Measurement Capabilities | Bulk Properties |
| Thermal Conductivity | 0.01 to 2 W/m•K |
| Measurement Time | < 2 seconds |
| Reproducibility | Typically better than 2% |
| Accuracy | Typically better than 5% |
| Temperature Range* | -50 to 100°C |
| Pressure | Ambient |
| Smallest Volume | 15 ml |
| Largest Sample Size | Unlimited |
| Standards | ASTM D7896-19 |
