hcdar-63 hcdar-63 hcdar-63

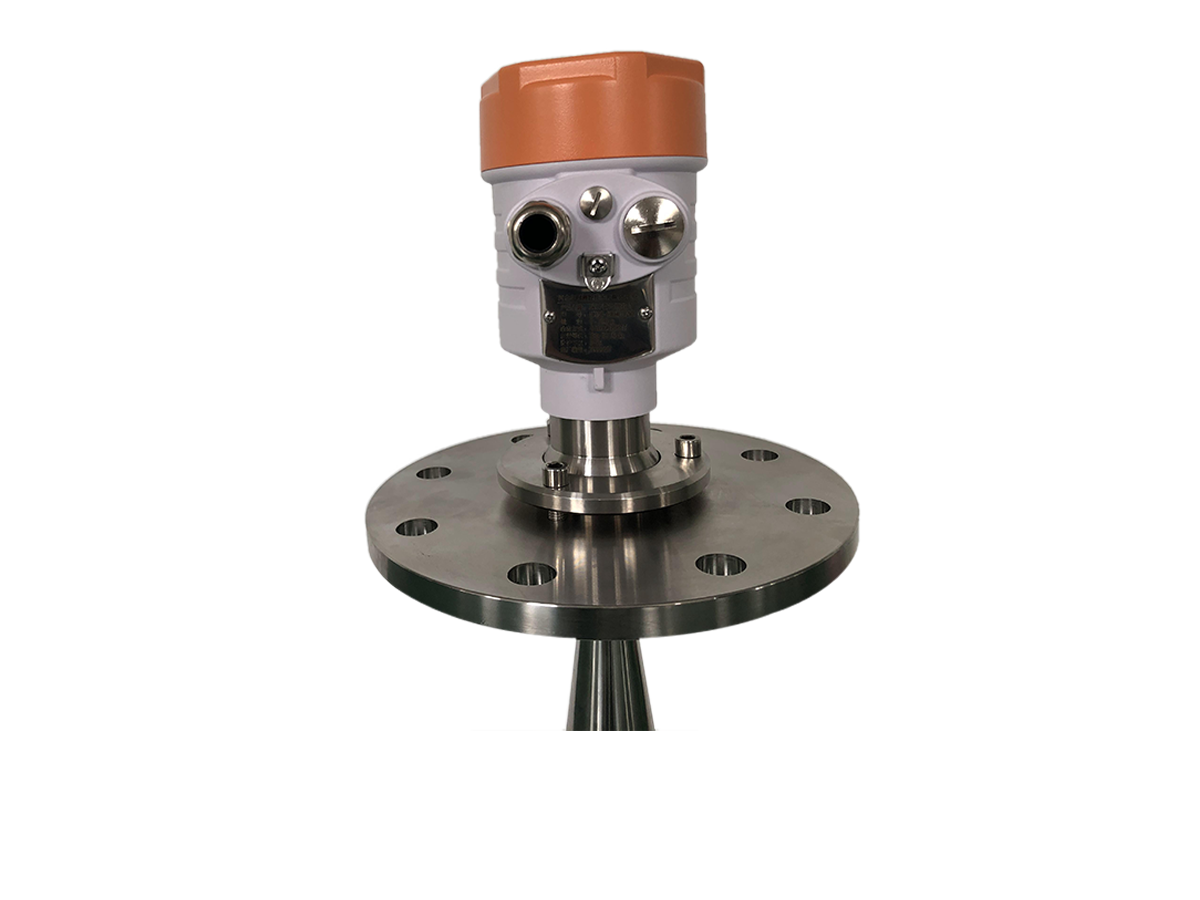

HCDAR-63 is anti-crystallization and anti-condensation product, unique design of antenna, suitable for solid materials and strong dust environments.

  • small beam angle, energy concentrated, stronger ability anti-interference, the accuracy and reliability are greatly improved.
  • small size antenna, convenient for installing.
  • smaller measuring blind zone, works well for small tank
  • shorter wavelength, more suitable for measuring the level of small particle materials
  • non-contact measurement,  no abrasion, no pollution.
  • signal output has two options: two-wire 4-20mA @HART or four-wire RS485 @MODBUS protocol , four-wire power supply can reach 12V DC as low as possible.


Application Solid Material, Solid Powder, All kinds Of Dust Environment
Measuring Range 0 - 70 m
Connection Process Flange
Medium Temperature -40 - 350 ℃
Process Pressure -0.1 - 2 MPa directional
Accuracy ±15 mm
Signal Output 4 - 20 mA HART / RS485 Modbus
Explosion-Proof Grade Exia IIC T1-T6 Ga
Protection Grade IP 68
Frequency Range 26 GHz
