- Simultaneous display of...
- Dissolved Oxygen
- Conductivity / TDS
- 2 channels of Ion, pH or mV
- Date & Time
- Automatic Stability Function
- PIN Code Access
- Programmable "Calibration Due" Alarm
- 240 x 64 dot graphic display with large digits, full text messages and backlight.
- 1489 reading memory with Automatic Datalogging.
- RS232 computer interface port.
- Automatic calibration.
- Readout of probe condition for instant troubleshooting.
- Fully waterproof design.

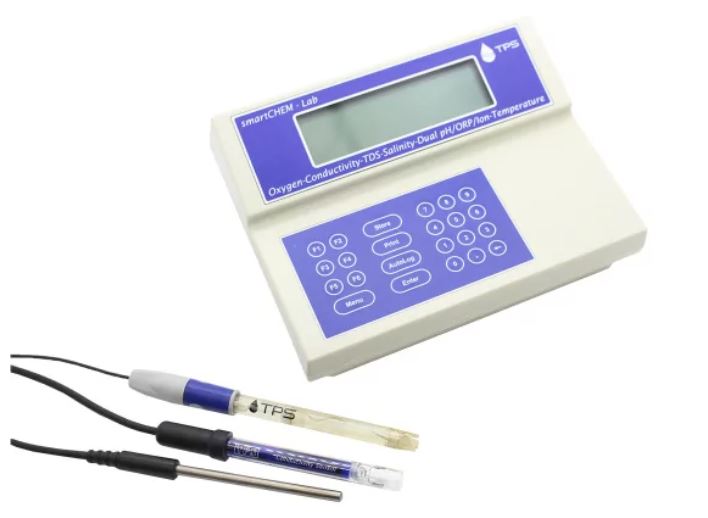

The smartCHEM-LAB is a complete water quality laboratory with Dissolved Oxygen, Conductivity, TDS, 2 channels of Ion/pH/mV and Temperature readouts.
The smartCHEM-LAB comes with a 1489 reading memory. Readings can be recorded manually, or automatically logged at preset intervals.
RS232 Serial Port Interface
The capabilities of the smartCHEM-LAB have been expanded with the RS232 port, which is standard equipment (cable sold separately). All readings stored in memory can be downloaded to an RS232 printer or PC. The RS232 port also allows the smartCHEM-LAB to log directly to the printer or PC. WinTPS Communication software for Windows 3.1 or 95, 98 & ME is available.
Automatic Stability Function (ASF)
ASF adds an extra level of versatility to the smartCHEM-LAB. When ASF is activated, the smartCHEM-LAB monitors all parameters that are currently in use. When ALL parameters become stable, the readings are frozen on the display. ASF is automatically activated with extra fine settings during calibration, to ensure the most accurate possible results for the user.
ASF can also be used during Manual and Automatic Datalogging. When used during Automatic Datalogging, the smartCHEM-LAB will log until a stable end-point is reached for all parameters, then stop logging.
Good Laboratory Practices
To comply with GLP guidelines, the date, time and results of the last calibration are stored in memory, along with the instrument’s serial number. This data can be displayed or sent to the RS232 port. All readings stored in memory are stamped with the date and time. Warning of failed calibration is provided.
A calibration alarm can be programmed to whichever parameters the user chooses. The alarm can be set for Daily, Weekly, 2 Weekly or 4 Weekly. The calibration alarm can also be switched off.
PIN Code Access
The Access Code is system is provided for those users who need to ensure the integrity of recorded data, calibration settings and so forth. The Access Code function will prevent anyone who does not know the code from entering the menu system. Keys that are available during normal measurement, (Store, Print, Autolog and F1 to F5 ) are still available without the Access Code. This means that others are still able to carry out day-to-day work.
Easy to use
The smartCHEM-LAB has a 240 x 64 dot graphic display. It features a user-friendly menu system, making the manual virtually unnecessary. Full-text help and error messages are provided. All readings and messages are provided in large, bold characters.
Where necessary, the user is able to define the standards to be used for calibration. For pH calibration, the smartCHEM-LAB is programmed to automatically recognise the most popular buffers, making calibration a breeze. Any non-standard buffer value can be entered during calibration.
Karl Fischer Measurements
A polarisation output is provided for Karl Fischer moisture titrations.
Dissolved Oxygen Stirrer Output
A 4.5V DC output is provided for use with the YSI Self-Stirring BOD electrode. The output can be activated as required by the user , or automatically during Automatic Datalogging.
Reliability and Service
The smartCHEM-LAB is fully waterproof to IP65, so it is suitable for even the harshest laboratory or factory environments.
TPS has been manufacturing top quality, reliable instruments and electrodes since 1968. The TPS Quality System has been certified in accordance with the AS/NZS ISO 9001 standard. Our service is also of the highest standard. Spares and accessories are always held in stock, and our modern service facilities ensure a rapid turn-around for maintenance and repair work.
|Dissolved Oxygen Ranges||ED1 :
0.00 to 20.00 ppM
20.0 to 40.0 ppM
0.0 to 250.0 % Sat'n
250 to 450 % Sat'n
0.0 to 50.0 % Gaseous
50 to 100 % Gaseous
0.00 to 25.00 ppM
25.0 to 40.0 ppM
0.0 to 300.0 % Sat'n
300 to 450 % Sat'n
0.0 to 60.0 % Gaseous
60 to 100 % Gaseous
|Resolution||0.01 & 1 ppM
0.1 & 1 % Saturation
0.1 & 1 % Gaseous
|Accuracy||+/-0.2 % of full scale of selected ppM range
+/-0.3 % Saturation
+/-0.1 % Gaseous
|Conductivity Ranges||0.000 to 14.000 pH
0.00 to 14.00 pH
|Temperature Range||-10.0 to 120.0 oC|
|Memory||1489 readings including date and time.|
|Automatic Datalogging||User-set for one reading every 2 to 90 seconds, minutes or hours.|
|RS232 Serial Port Output||1200, 9600, 19200 and 38400 Baud.
8 Bits, No Parity, 1 Stop Bit, XON/XOFF Protocol
|Recorder Output (optional)||Max 0 to 2000mV output for any one parameter at one time.
Output impedance approx 1000 Ohms.
Resolution approx 2 mV.
|Enclosure||Tough, high impact ABS. Splash resistant one-piece lid.|
|Power||12V DC via AC/DC adaptor.
AC/DC adaptor to suit specified country is supplied.
