- Standard software (Windows) of the German Federal Institute of Hydrology (Bundesanstalt für Gewässerkunde, BfG) and the Water and Shipping Authorities for Evaluation of Mobile Flow Measurement in accordance with ISO748 and Gauging Regulations, Annex D
- Relational database management system (SQL interface, easy data search and data backup, redundancy-free storage)

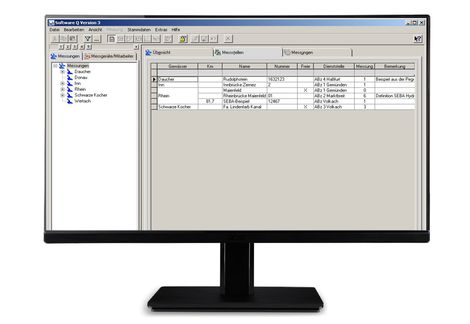

- Data management for measuring instruments (e.g. M1 Mini vanes, Universal Wing F1, HydroProfiler-M, HydroProfiler M-Pro) and calibration equations
- Creation of measurement reports
- Supported measurement methods: single-point measurement, two-point measurement, multi-point measurement
- Modularly expandable (Pro-module, module vane, module HydroProfile etc.)
Software Q, Version 4 Base Module:

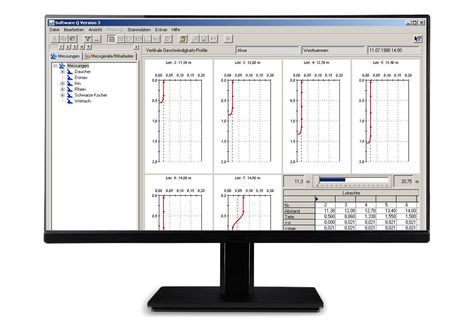

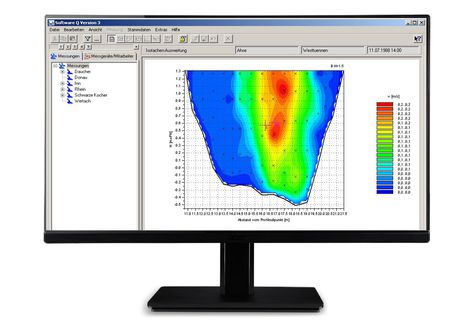

The APP allows the acquisition, management and analysis of flow rates using Windows. The technical basis of the program is provided by the gauging regulation, Annex D. The determination of the flow rate (Q) must be executed applying the surface speed method, which is customary in the hydrological practice. Considering the device-specific parameters, the total flow can be evaluated immediately after the data acquisition. The convenient user interface provides the user with a variety of applications for water analysis. From the available data, vertical velocity profiles and isotachs are calculated and illustrated in graphs. Faulty measurements are thus recognised early on and they can be corrected immediately or discarded. Just one mouse click generates a detailed measurement protocol with the input data of the measurement, the calculation results, the gauging requirement, the velocity profiles of the plumb line and the measuring section.
"Pro" Module
Features: integrated finite element module, calculation of partial outflows, virtual vertical and horizontal sections, determination of calibration factors
"Vane" module
Features: With the wings pulse converter included in the scope of delivery, the laptop or tablet PC serves as a counting device and enables direct processing and displaying of wing pulses. Software Q does not require the time-consuming, manual transfer of measurement results; instead, the user receives immediate feedback on the quality of the measurement performed.
HydroProfiler® Interface:
Features: direct transfer of measurement data from the "HydroProfiler" software in Q 4
