HCDAR-62

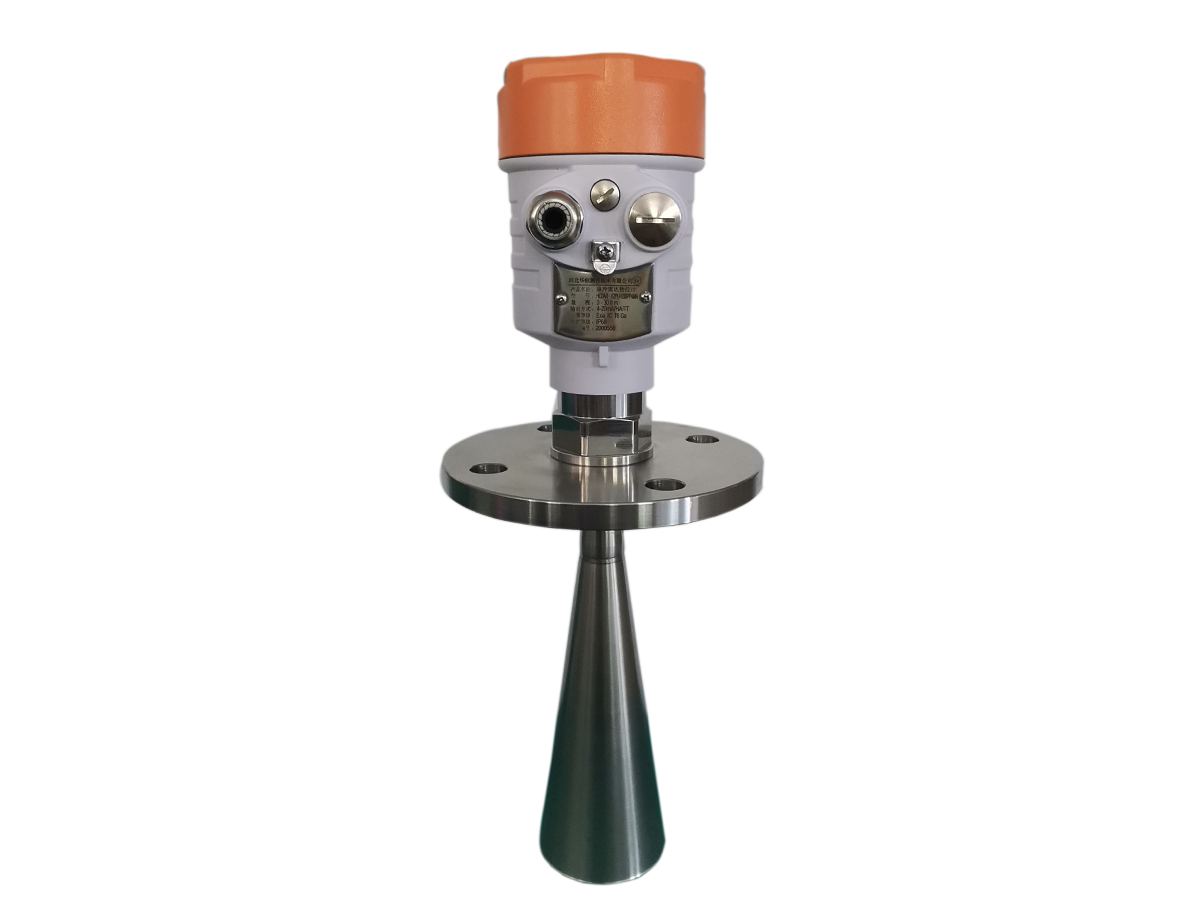

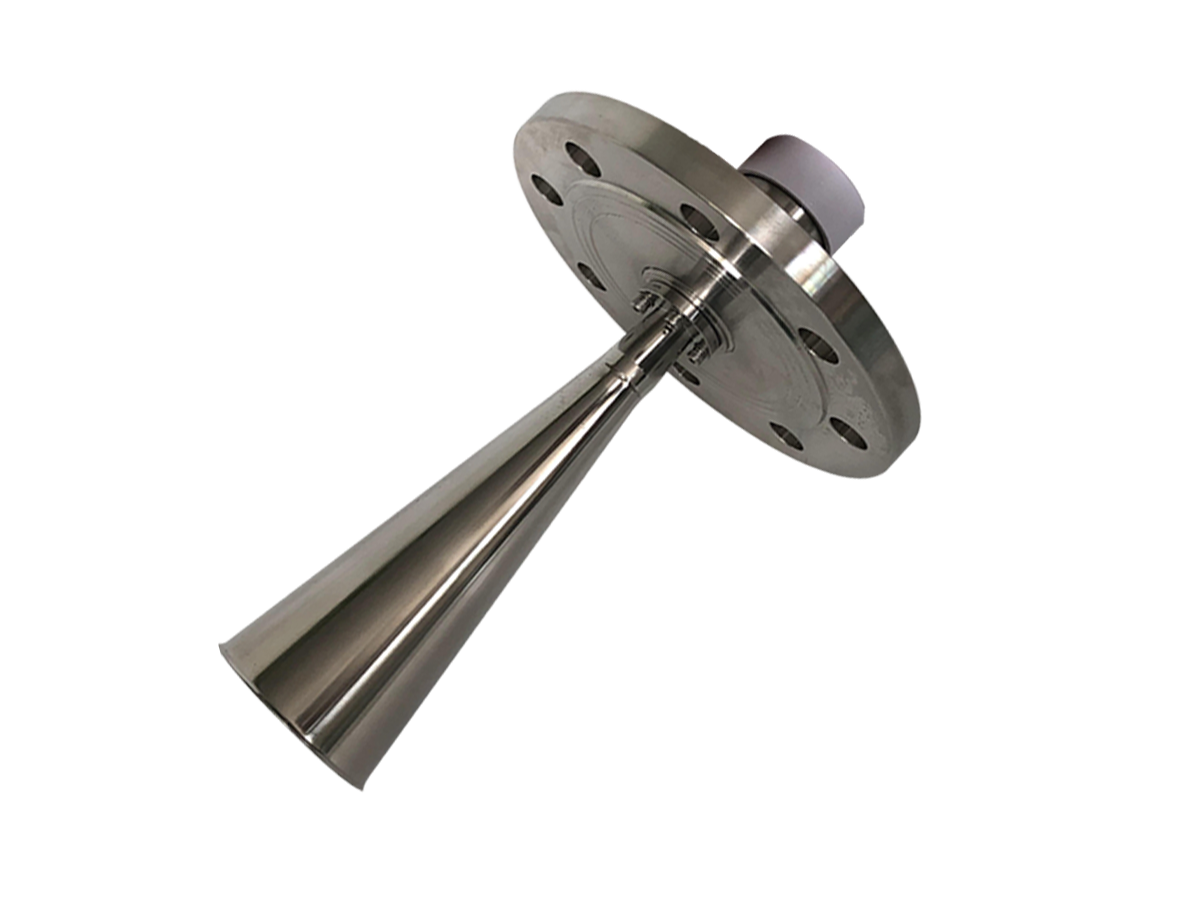

HCDAR-62 has stainless steel horn antenna, suitable for water level measurement of lakes, river ways, reservoirs, open channels, tidal water.
- small beam angle, energy concentrated, stronger ability anti-interference, the accuracy and reliability are greatly improved.
- small size antenna, convenient for installing.
- smaller measuring blind zone, works well for small tank
- shorter wavelength, more suitable for measuring the level of small particle materials
- non-contact measurement, no abrasion, no pollution.
- signal output has two options: two-wire 4-20mA @HART or four-wire RS485 @MODBUS protocol , four-wire power supply can reach 12V DC as low as possible.
| Application | Liquid, slurry |
| Measuring Range | 0 - 70 m |
| Connection Process | Thread, Flange |
| Medium Temperature | -40 - 350 ℃ |
| Process Pressure | -0.1 - 2 MPa |
| Accuracy | ±3 mm |
| Signal Output | 4 - 20 mA HART / RS485 Modbus |
| Explosion-Proof Grade | Exia IIC T1-T6 Ga |
| Protection Grade | IP 68 |
| Frequency Range | 26 GHz |
