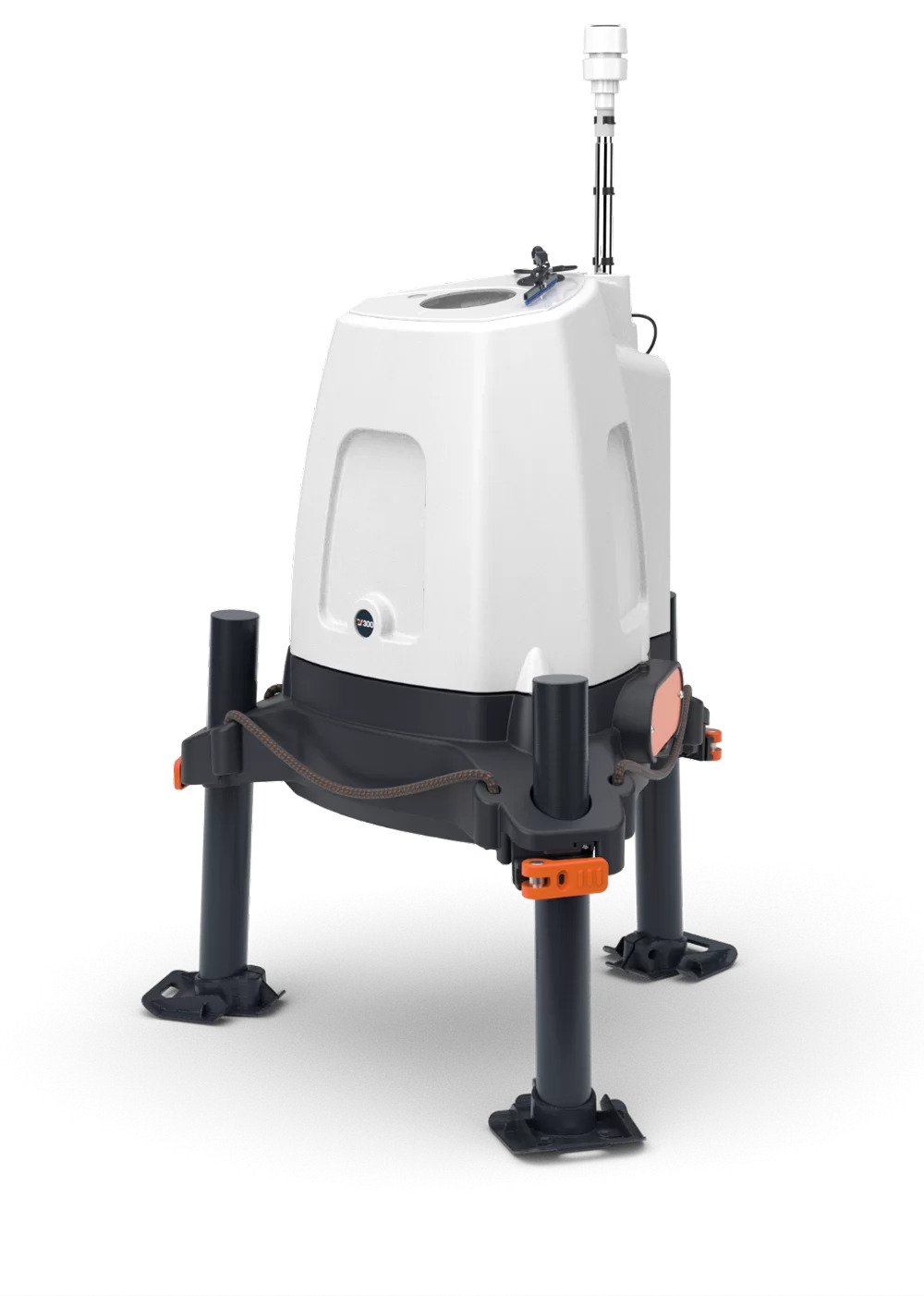

ZX300 Wind Lidar
- The ZX300 wind lidar is a sophisticated, rugged system, highly reliable, designed and built to perform
- In real world deployments and extreme environments.

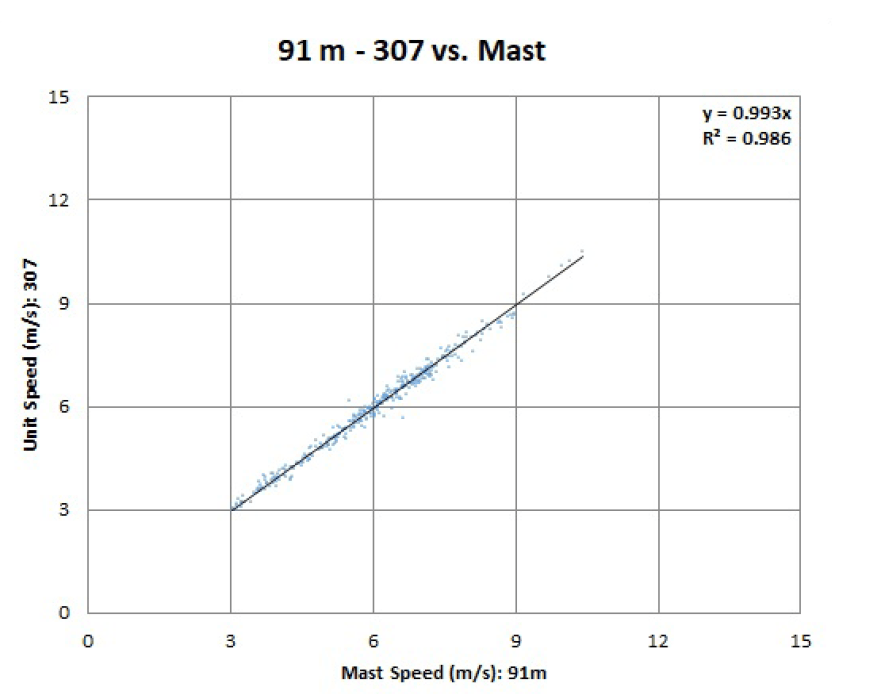

- Absolute accuracy demonstrated through wind tunnel testing.
- DNV GL Stage 3 approved finance-grade data in benign terrain.
- Deutsche WindGuard approved CFD conversions for finance-grade data in complex terrain.
- Low cost of ownership with no requirement for annual servicing or calibration within a 3 year period.
- Modernised internal components. These benefits are realised through increased in-field performance and long-term serviceability. ZX 300 is provided as standard with an extensive36 month return-to-base warranty –the longest of any Lidar.
- Refreshed User Interface. Additional contrast modes and streamlined menu systems promote easier navigation when deploying and configuring ZX 300.
- Performance Verification through our rigorous and audited Factory Acceptance Test as standard.
- Real-time Quality Controlled 1-seconddata. This new best-in-class resolution of wind data enables emerging Lidar applications within the wind, meteorological and associated industries such as crane lifts and helicopter operations. No other Lidar provides a full 360° wind field calculation derived from just one second of data.
| Range | 10 - 300 metres (Lidar measurement) 0 - 10 metres (onboard met weather station) |
| Probe length | ± 0.07 metres @ 10 metres ± 7.70 metres @ 100 metres |
| Heights measured | 10 User configurable 1 Additional met weather station measurement |
| Sampling rate | 50Hz (up to 50 measurement points every second) |
| Averaging rate | True 1-second averaging 10 Minute averaging |
| Accuracy wind speed | 0.1 m/s* |
| Direction variation | < 0.5° |
| Speed Range | < 1 m/s to 80 m/s |
| Service interval | 36 months from new |
| Size | 900 x 900 x 1001mm |
| Weight | 55kg |
| IP Rating | IP 67 |
| Power consumption | 55W |
| Power input | 12V |
| Temperature range | -40 + 50 degree celsius |
| Warranty | Up to 5 years |
| Maintenance | No annual maintenance or calibration in this period |
