HygroVue10

HygroVue10

Categories Environment , Weather Station & Sensors

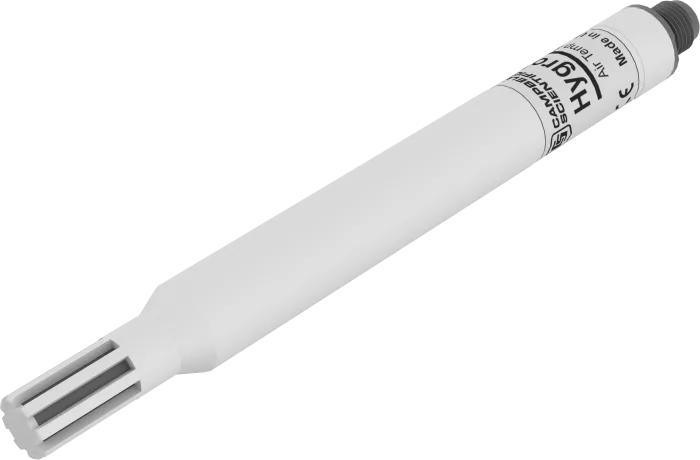

The HygroVUE™10 offers a combined temperature and relative humidity element in an advanced digital sensor that is ideal for weather networks. It utilizes a latest-generation, Swiss-made, combined relative humidity and temperature element based on CMOSens^® technology that offers good measurements, accuracy, and stability. Another benefit is that it's digital output avoids the extra errors associated with measuring analog sensors.

A hydrophobic sintered filter prevents dirt and water from entering the cap. The filter is designed to be resistant to wind-driven rain. A secondary PTFE membrane filter is bonded to the surface of the sensor element to prevent finer dust and mold from directly influencing the measurements.

Sensor housing is designed to withstand permanent exposure to various weather conditions and to fit inside a range of radiation shields (including compact shields), the HygroVUE™10 is truly suitable for a wide range of monitoring applications.

The HygroVUE™10 Each element of the HygroVUE™10 is individually calibrated with the calibration corrections stored on the chip. You can easily change the sensor element in the field, which reduces your downtime and calibration costs.

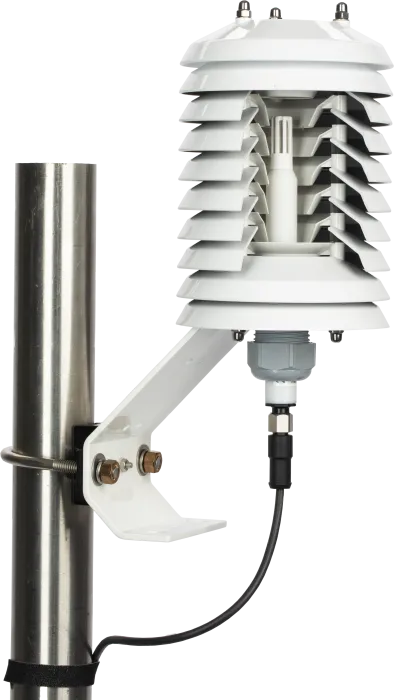

The HygroVUE 10 is specifically designed for field use with dimensions to suit common radiation shields. (Campbell Scientific recommends the RAD10E 10-Plate Solar Radiation Shield.) You can mount the RAD10E on vertical or horizontal poles.

Field Calibration

Calibration is easy to carry out by simply changing the sensor element. As each sensor element is individually calibrated, no further adjustments of the sensor are required.

Uses a combined, pre-calibrated digital humidity and temperature element
Field-changeable element for fast, on-site recalibration
Digital SDI-12 output, allowing long cables with no added errors
Simple data logger programming
Low power consumption
Wide operating voltage
Rugged design with potted electronics
Standard M12 connector with IP67 sealing rating

Sensing Element	SHT35 modified by Campbell Scientific
Signal Output	SDI-12 V1.4 (responds to a subset of commands)
Supply Voltage	7 to 28 Vdc
EMC Compliance	Tested and conforms to IEC61326:2013
Standard Operating Temperature Range	-40° to +70°C
Main Housing Material	UV stable, white PET-P
Electronics Sealing Classification	IP67
Sensor Protection	Outer glass-filled polypropylene cap fitted with a stainless-steel mesh dust filter with nominal pore size of < 30 µm. The sensor element has a PTFE protective film with a filtration efficiency of > 99.99% for particles of 200 nm or larger size.
Sensor Connector	M12, male, 4-pole, A-coded
Cable	Polyurethane sheathed, screened cable, nominal diameter 4.8 mm (0.19 in.)
Field-Replaceable Chip or Recalibrate	Field-replaceable chip
Sensor Cap Diameter	12.5 mm (0.5 in.)
Body Diameter at Connector	18 mm (0.7 in.)
Length	180 mm (7.1 in.) without cable fitted
Sensor Body Weight	50 g (1.8 oz)
Weight	250 g (8.8 oz) with 5 m (16.4 ft) cable

Measurement Range
Accuracy	-NOTE- The accuracy figures quoted are the 95% confidence limits relative to factory standards. ±1.5% (at 25°C, over the range 0 to 80% RH) ±2% (at 25°C, over the range 80 to 100% RH)
Short-Term Hysteresis	< ±1% RH
Additional Errors at Other Temperatures	< ±1% RH (over -40° to +60°C)
Long-Term Stability	±0.5% per year (maximum drift in clean air conditions)
Reported Resolution	0.001% RH
Repeatability	0.05% RH (3σ noise level)
Response Time with Filter	< 20 s (63% response time in still air)

Measurement Range	-40°C to +70°C
Accuracy	-NOTE- The accuracy figures quoted are the 95% confidence limits relative to factory standards. ±0.2°C (over the range -40 to +70°C) ±0.1°C (over the range 20 to 60°C)
Long-Term Drift	< 0.03°C per year
Reported Resolution	0.001°C
Repeatability	0.04°C (3σ noise level)
Response Time with Filter	< 130 s (63% response time in air moving at 1 m/s)
Calibration Traceability	NIST and NPL standards
