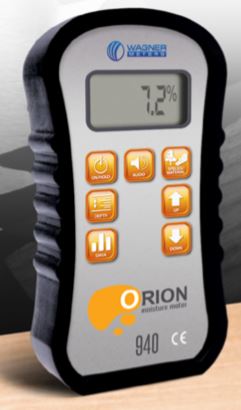

ORION® 940 MOISTURE METER

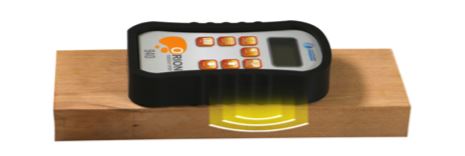

With its electromagnetic field, your Orion® 940 moisture meter covers a relatively large cross-sectional area each time you take a reading, giving you a far better representation than other technologies of the true moisture content of your wood.
Your Orion® 940 is best-suited for wood thicknesses from .25 inches (6mm) up to 1.5 inches (38mm). The meter can be used on non-solid wood products, and the Species Setting Booklet includes a few settings for some of these common materials
ORION® 940 FEATURES
- Digital display resolution of 0.1% (in Standard Measurement mode)
- MC measurement range for wood 4.0% to 32.0%
- Relative scale for testing non-wood building materials
- Programmable settings for a wide range of softwood and hardwood species
- Large moisture measurement sensor area
- Current reading can be frozen on display screen, great for note taking
- Low battery alert indication • Audible alarm for programmable high moisture content limits
- Programmable audio alert volume
- Can be field-calibrated with the included Orion® On-Demand Calibrator
- Protective rubber boot
- Hard shell storage case and a 9-volt battery are included
- IntelliSenseTM– Read beyond surface conditions (¾” Mode)
- Automatic shutoff when not in use
- Data collection – 2 modes: manual or automatic data storage with viewable moisture content stats
| Scanning Area | 2.0 inches (50mm) x 2.5 inches (63mm) |
| Power | 9-volt battery (Wagner recommends using non-rechargeable Alkaline or Lithium or rechargeable NiMH batteries) |
| Auto Power Shut-Down | 60 seconds |
| Measurement Ranges |
MC range for wood: 4.0% to 32.0% |
| Specific Gravity Range for Wood Species | 0.20-1.0 SG |
| Storage Temperature and Humidity | +50˚F to +90˚F (+10˚C to +32˚C), Maximum relative humidity of 95%, Non-condensing |
| Operating Temperature Range | +32˚F to +110˚F (+0˚C to +43˚C) |
