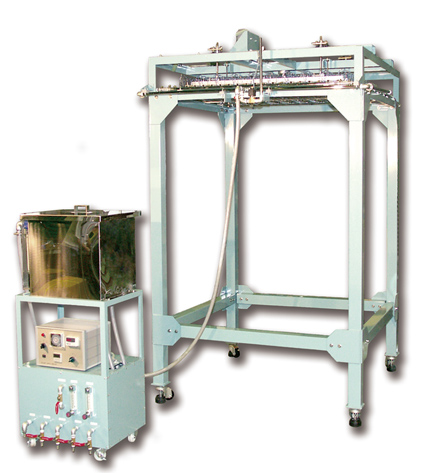

Rainfall Simulator
Rainfall Simulator

A highly accurate rainfall can be examined by the new rainfall nozzle adoption!!

Rainfall simulator can reproduce a natural rainfall for researching of rainfall effect. There are two standard types of effective rainfall area that is 1m×1m, and 1.5m×1.5m. Moreover, the effective rainfall area can be customized to a request besides two standard types. In this rainfall simulator, the efficient rainfall nozzle is adopted for variety testing. The accuracy of the rainfall distribution in the range of the effective rainfall area is 50%* improved of the conventional model. The nozzle has in the high-velocity revolution (random rainfall mode) can reproduce nearly natural raindrop falls in the effective rainfall area. (The raindrop is dropped at random) The changeable rotational speed of the nozzle can make raindrops in any desired sizes. Setting range of the raindrop size:φ1.7mm ~φ3.0mm.

* It is a measurement value at the time of a new delivery, and not the one to Guarantee the value after continuance is used.

                                                                                                                  Artificial raindrop generator 1unit
Effective rainfall area 1m(1m x 1m) or 2.25m(1.5m x 1.5m)
Effective height Approx. 2m
Rainfall strength 10~80㎜/h
Changeable range of raindrop size 1.7 - 3.0mm
Distribution accuracy
(※)The measurement technique is based on our regulations, and the one in the range of the effective rainfall.
regular rainfall mode
 (the nozzle without velocity revolution)
 : within ±10%

Random rainfall mode: within ±20%

Water supply tank 1 unit
Power source Area 1mAC100V
Area 2.25m3 phase 200V
