01.16 Prospecting Kit For Geological Surveys
Eijkelkamp Soil & Water composed a prospecting kit for general geological surveys.
- Eijkelkamp 01.16 Prospecting Kit For Geological Surveys used for augering in heterogeneous soils.
- To execute manual augering to a depth of 7 m.
Used to drill shot holes by hand in areas with difficult access. - Each seismic field crew should have a set available for scouting and drilling purposes.
- The backpack allows for quick mobilization and quicker tracking in the bush.

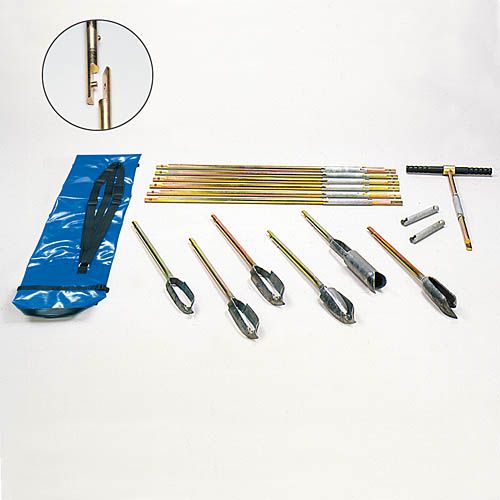

- Includes 4 types of Edelman augers (clay-, sand-, coarse sand- and combination type), a Riverside auger, a stony soil auger and a handle with extension rods.
- Bayonet connections
Benefits Prospecting kit for geological surveys
- Basic soil sampling set with most essential augers
- Will cope with soft and hard soils
- Drills up to seven meters
- One man operated
- Lightweight 17 kg
| Connection | bayonet |
| Maximum sample depth | 7 m |
| Product material | iron, other material |
| Sample diameter | 7 cm |
| Sample length | 10 cm |
| Sample specification | disturbed |
| Sampler position | vertical |
| Package size | 117 x 27 x 23 cm |
| Weight | 18 kg |
| Applications | Soil profile description and classification, Soil sampling above the groundwater table, Soil sampling below the groundwater table |
