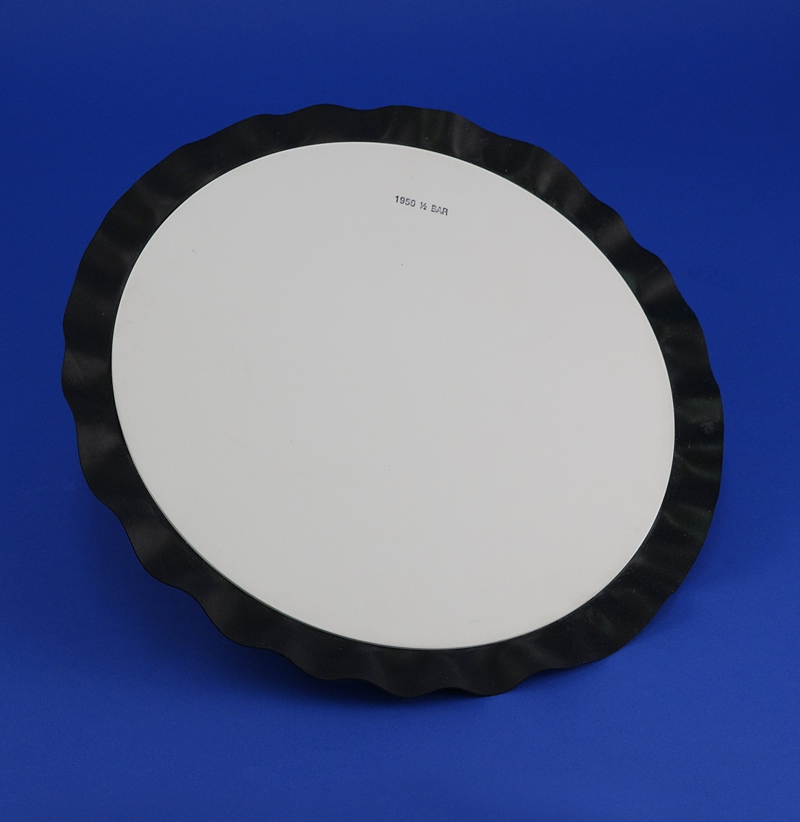

Soil Water Sampling Plate
The 1950B.5 Soil Water Sampling Plate is specifically designed to be buried beneath in situ or laboratory soil columns to collect drainage. The sampling plate is 10.5" (27 cm) in diameter, with Butyl rubber backing and a stainless steel outflow stem on the bottom side. The bubbling pressure of the porous ceramic plate is in excess of 0.5 bar (50 kPa) and has high-flow characteristics.
- Pore Water Sampling
- Environmental Monitoring
- Mining
- Soil Moisture Soil Water Sampling Plate designed to be buried beneath in situ or laboratory soil columns to collect drainage.
- A continuous vacuum must be applied to collect samples held at soil suctions greater than field capacity.
- The sampling plate is 10.5" (27 cm) in diameter, with Butyl rubber backing and a stainless steel outflow stem on the bottom side.
- The bubbling pressure of the porous ceramic plate is in excess of 0.5 bar (50 kPa) and has high-flow characteristics.
Sampling Plate diameter: 10.5"
Weight: 2.42 lbs.
