PAR 400 to 700 nm

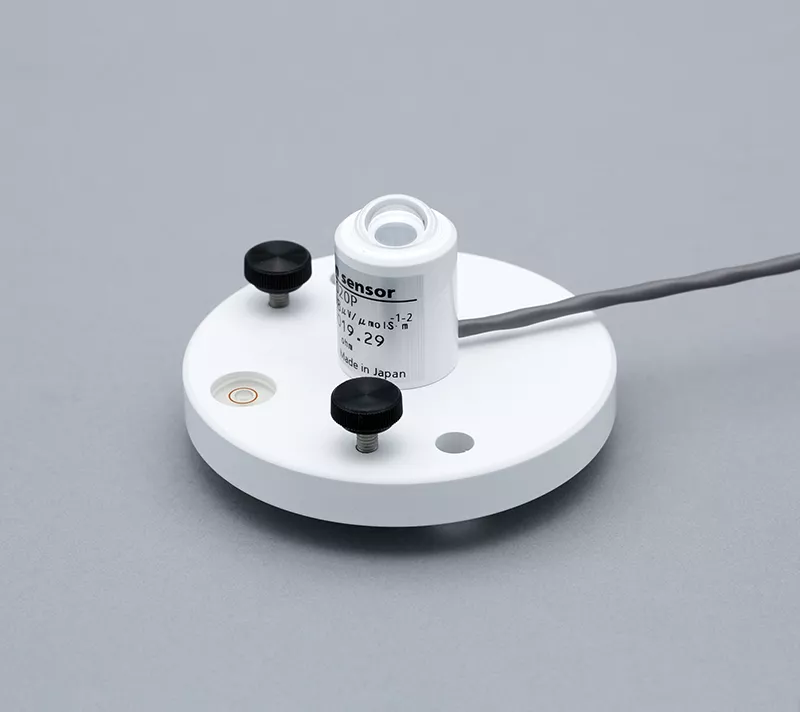

The compact ML-020P PAR or Quantum sensor has a special optical filter that mimics the spectral response function of plant leaves and is designed for horticulture and agricultural applications.
Designed for horticulture and agricultural applications, the photon active range of the compact ML-020P PAR or Quantum sensor is between 400 to 700 nm; that is the Photosynthetically Active Radiation (PAR), otherwise known as Photosynthetic Photon Flux (PPF), or Photosynthetic Photon Flux Density (PPFD), represented as μmol/m/s (micromoles of photons per meters squared per second).
The low output Voltage of the sensor can easily be converted to a 4-20mA current or higher Voltage using the MS-4.20mA converter. The mV/mA converter can be pre-programmed and optimised within the operating range compatible with standard measurement equipment.
- Compact design
- PAR response curve
- Glass dome plus diffusor optics
- Low temperature dependency
| Irradiance range | 0 to 3000 μmol/s-1/m-2 |
| Output | 0 to 20000 μV |
| Impedance | 30 Ω |
| Operating temperature range | -10 to 50 °C |
| Temperature response -10°C to 50°C | 1.1 % |
| Cable length | 5m (10/30/50m) |
| Leveling plate | Optional |
