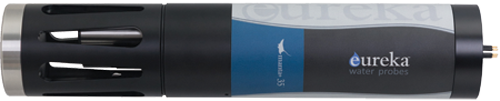

Eureka Manta Plus 35 Multiparameter Water Quality Sonde
The Manta+35 is available in two configurations, the M+35A and M+35B.
Both come standard with turbidity, temperature, pH, conductivity, and dissolved oxygen sensors, with the option to add ORP and depth sensors.
In addition to these standard sensors, the M+35A model will accommodate two fluorometers (medium sensors) plus two ISE sensors (small sensors).
The M+35B will accommodate three fluorometers (medium sensors).
- Supports multiple fluorometers and ISEs
- Ideal for nutrient and algal studies
- Flexible configurations for custom projects
- Built for complex water quality investigations
Typical sensor lifespan >6 years+ for pH, ORP and DO.
- Standard sensors: Temperature, pH, Conductivity, Optical DO, Turbidity
- Integrated wiper system

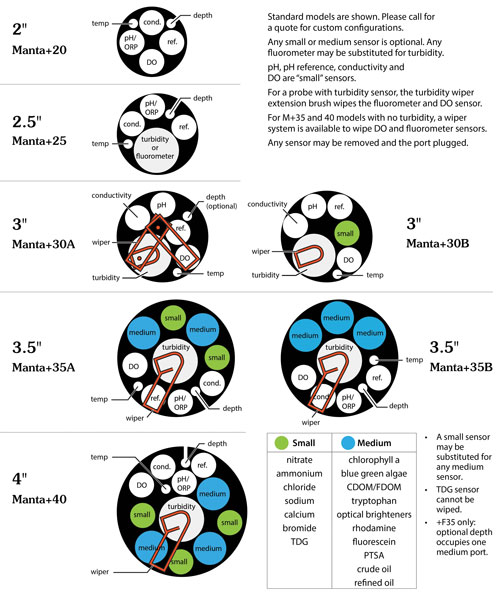

Two configurations:
- Manta+35A: up to 2 fluorometers + 2 ISEs
- Manta+35B: up to 3 fluorometers
- Optional ORP and Depth
- Internal logging and telemetry ready
| Specification |
Manta+35 |
| Data Memory | Greater than 1,000,000 logged readings |
| Sample Rate | 1 Hz |
| Communications | RS-232, SDI-12, MODBUS, USB or Bluetooth |
| Depth Rating | 200 m, Max depth for ISE and TDG sensors is 15 meters |
| Operating Temperature | -5 to 50 C |
| Battery Pack | 6 x C Size Batteries |
| Number of sensors | Up to 11 |
| Weight - with IBP | 8.75 lbs |
| Without Battery | 7.75 lbs |
| Add Internal Battery Pack | 22.5 inches |
| Length - w/o Battery Pack | 21 inches |
| Diameter | 3.5 inches |
- Nutrient and algae monitoring
- Wetland and estuary studies
- Mining and industrial discharge monitoring
- Research and academic studies
- Advanced environmental impact assessment
