- Enclosure Waterproof to IP65
- Dual Set Point Control Relays
- Easy to Install
- Easy to Use
- 4-20mA and 0-1 V DC Outputs
- Australian Made
Dual Set Points are provided. The default setup for these are as "Too High" and "Too Low" control points. The user can also re-set them so that they are both "Too High" or both "Too Low" control points. An example of this type of setup is where the proCHEM unit has one point set to control the process, and a second point beyond that set to activate an alarm.

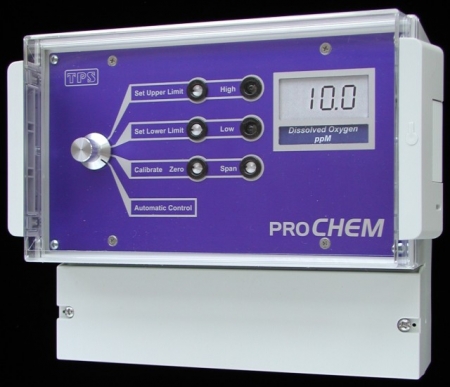

Separate LED's indicate when either of the Set Points has been exceeded. The output relays are rated to 240V and are fused at 1 Amps. Higher currents can be switched with an external contactor. All proCHEM units are easy to install. They are housed in a rugged plastic case which is non corrosive, waterproof and dustproof to IP65. All controls can be accessed via the hinged, clear cover. The large LCD display is easy to read, even from a distance.
The proCHEM series is designed for maximum flexibility. 4 to 20 mA and 0 to 1 V DC outputs are provided as standard.
For a total solution to your control requirements, TPS also offers a peristaltic pump, the easyFLOW-VS.
| Range | k=0.1 Sensor....0 to 19.99 uS/cm 0 to 199.9 uS/cm 0 to 1999 uS/cm k=1.0 Sensor....0 to 199.9 uS/cm 0 to 1999 uS/cm 0 to 19.99 mS/cm k=10 Sensor.....0 to 1999 uS/cm 0 to 19.99 mS/cm 0 to 199.9 mS/cm |
| Resolution | 0.1% of full scale |
| Accuracy | +/-0.2% of full scale at 25 oC |
| Linearity | +/-0.05% of full scale |
| Repeatability | +/-0.05% of full scale |
| Ambient Drift | <0.02%/oC |
| Long Term Drift | <0.1% per year |
| Temperature Compensation | Automatic, 0 to 100oC |
| Zero Range | +/-5% |
| Span Range | 70 to 130% |
| Sensors | Platinised Platinum, k=0.1, k=1.0 or k=10 |
| Enclosure | Polycarbonate, waterproof to IP65 |
| Outputs | Current : 4 to 20 mA Voltage : 0 to 1 V DC |
| Contacts | Two relays with changeover contacts. Rated to 240V, 1 Amp |
| Isolation | Galvanic isolation of sensor input Current and voltage outputs are not isolated |
| Power | 220/240 V AC, 50/60Hz (110/120 V AC available) 12V DC power optional. |
