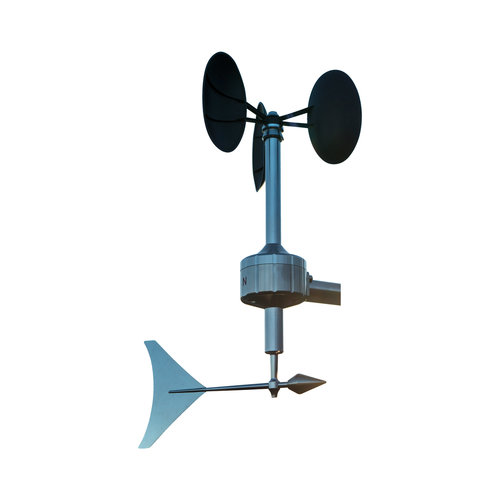

MeteoWind 2 wind sensor
Wind speed & wind direction

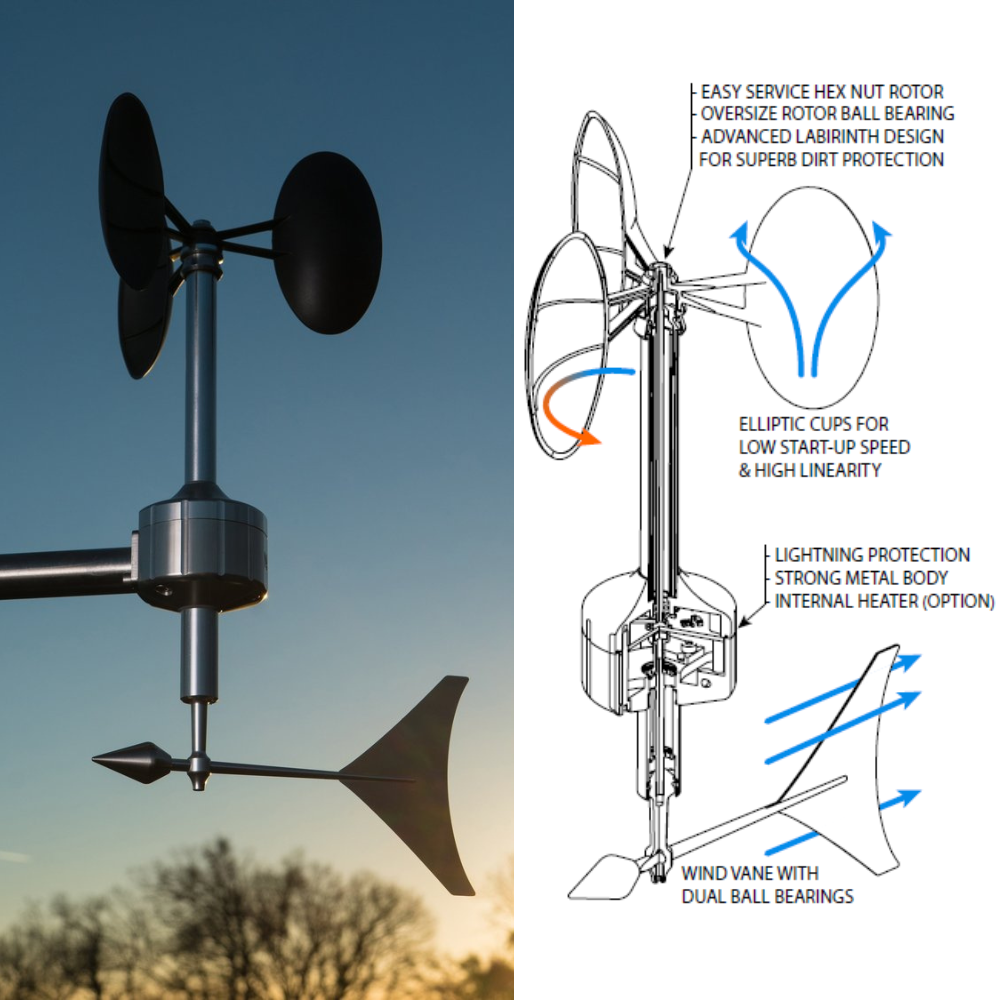

Serviceable bearing & cups with high dirt resistance
Elliptic cup design offers snow resistance and high accuracy per WMO & MEASNET standards
Anemometer with a wind vane. Exceeds WMO and MEASNET Class 1 accuracy standards for meteorology & wind resource assessment. Very low 4mA combined power consumption and integrated triple layer lightning & surge protection for reliable operation. Protected oversize bearings with high dirt and weather resistance proven to provide long-term measurement stability & reliability in dirty & dusty environments.
- Very low starting wind speed for such a compact anemometer
-
Excellent linearity and accuracy exceeding MEASNET requirements
-
Excellent off-axis response. Low distance constant
- Flat elliptic cups are more resistant to snow buildup
| Wind speed | |
| Range | 0-80 m/s gust |
| Resolution | 0.01m/s |
| Accuracy | < 1% of measured value (0.3 - 50 m/s) or < ±0.2 m/s or ±0.05 m/s (4-16 m/s) with MEASNET CALIBRATION |
| Sampling rate | 10Hz @ 3 pulses per revolution |
| Wind direction | |
| Range | 0-360° |
| Resolution | 1° |
| Accuracy | 2° (no dead-spot) |
| Sampling rate | 10Hz |
| Linearity | R2 > 0.99995 MEASNET/IEC 61400-12-1:2005 |
| Tilt angle sensitivity | Cosine response, see graph. (Horizontal wind speed measurement) |
| Starting wind speed | <0.3m/s |
| Default linearity constants (Calibration equation coefficients) | Anemometer Cups before 2023: m/s = 0.43*(Hz) + 0.33 Dendriform Cups 2023+: m/s = 0.4360 * (Hz) + 0.3500 for ±0.2 m/s or quadratic linearization: m/s = -0.00020 * (Hz)2 + 0.4470 * (Hz) + 0.3000 for ±0.15 m/s |
| Distance constant (Delay distance) | 1.7 m (per ASTM D 5096-96) |
| Output signal & communication | RS-485 with Modbus RTU & ASCII |
| Supply Voltage | 5...24VDC with inrush protection & reverse polarity protection |
| Power consumption | 2.6mA @12V (combined wind speed & direction at 10Hz sampling including RS-485 coms) |
| Lightning & surge protection | per IEC EN 61000-4-5 on both data & power lines, Surge, EFT/Burst, ESD 15kV |
| Operating temperature & humidity | -40°C to +80°C, 0% to 100% RH |
| Survival wind speed | >90m/s (324kph, 200mph) |
| Connection | Bayonet connector with silicone o-ring |
| IP – Protection rating | IP65W (DIN 40050) |
| Heater (optional) | 20W (1.1A) @ 24VDC (5W @ 12VDC), User selectable manual or automatic heater control |
| Weight (mass) | Anemometer = aprox. 300g (without stainless steel mount) |
| Dimensions | Anemometer rotor diameter = Ø164mm, Wind vane radius =136mm, Total height = 320mm |
| Patented / Registered | OHIM 002153882-0001, 002153882-0002, 002153882-0003 |
| Mounting | two M4 screws with supplied holder |
