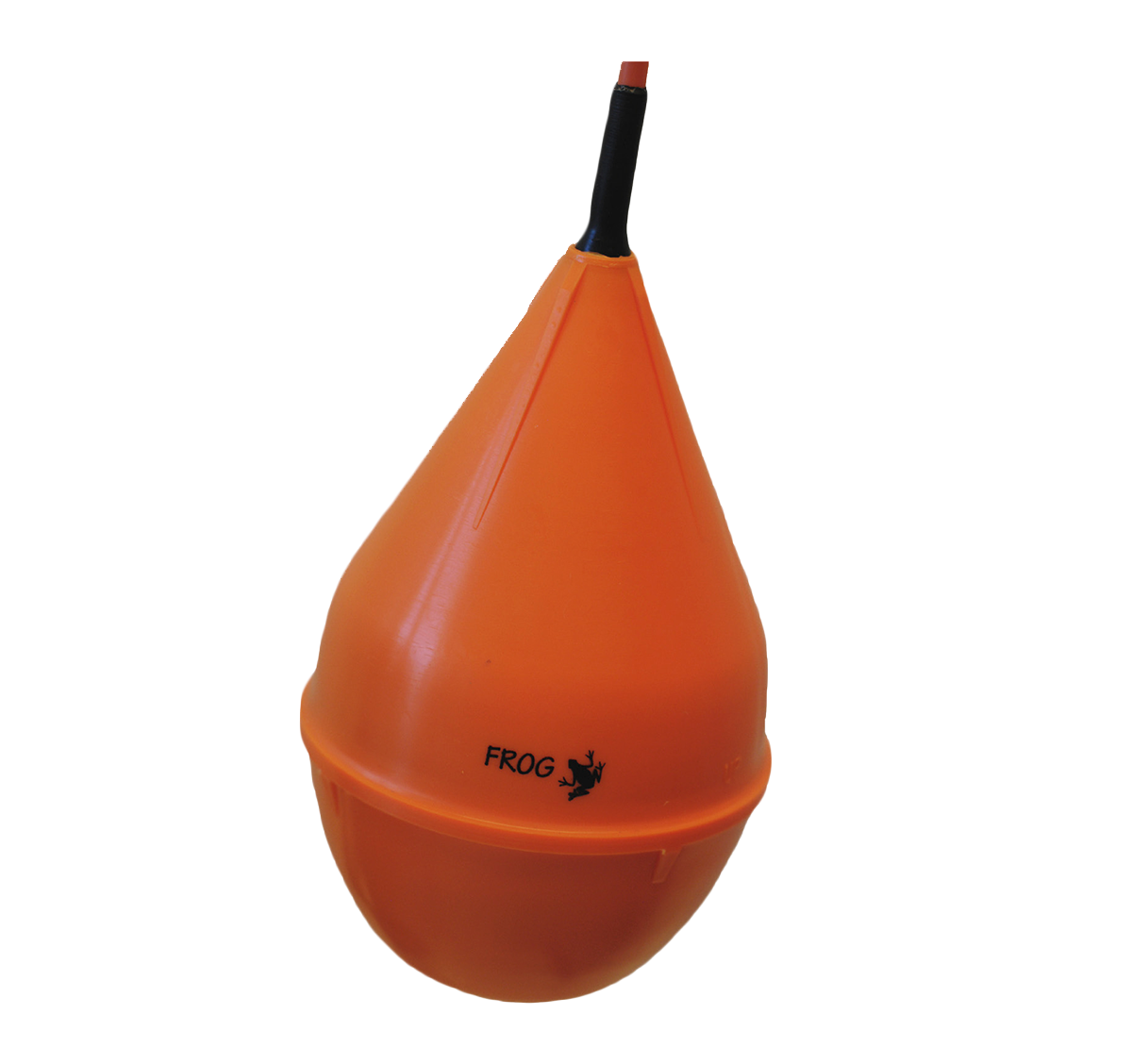

FROG Float Switch
FROG is a standard float switch with a micro switch for either a Normally Open (NO) or a Normally Closed (NC) status signal.
FROG is delivered in versions with a 10m or 20m fixed-mounted high-flexibility cable. A mounting bracket is included in both versions.
FROG is used as a high water level alarm in pump stations, low water level alarm in clean water tanks, water on floor alarm, as a controlling switch for pumps and many other functions.
- Pumping Stations
- Sewage Treatment Plant
- Stormflow
- Level Alarm
- Reservoir and Tanks
| Specifications: | |
| Contact system | Microswitch |
| Voltage | Max 250V AC |
| Max. rated current | 6A Resistive, 3A inductive |
| Pressure range | 200kPA |
| Cable length | 10m/20m |
| Largest diameter | 99mm |
| Length of floating element | 140mm |
| Tilting material | Polypropylene (PP) |
| Cable material | PVC |
| Enclosure class | IP68 |
| Max. operating temperature | +55°C |
| Buoyancy | 6N |
| Certificate | CE |
