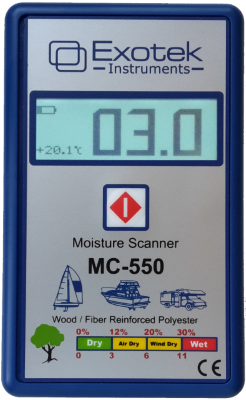

MC-550N MOISTURE INSTRUMENT FOR BOATS & CARAVANS
MC-550N MOISTURE INDICATOR (NON DESTRUCTIVE)
No nails, completely nondestructive moisture measurement by using a high frequency signal that changes due to moisture content.
- Buying a boat or caravan is a big investment! With the MC-550 you can find hidden errors that can be costly to fix.

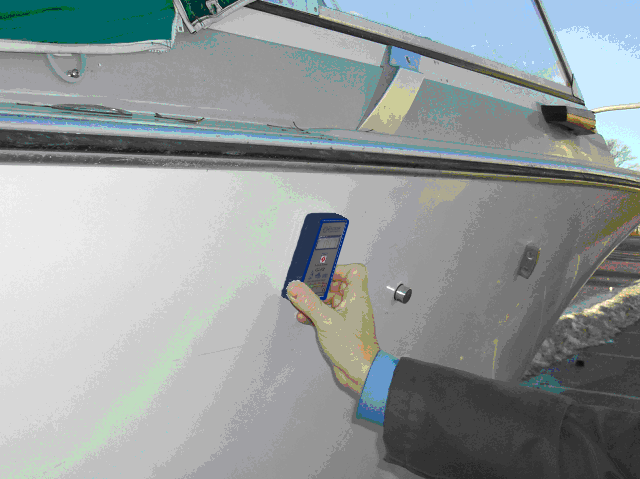

- The MC-550N can be used in caravans, boats or on ships to determine water damage.
- Find plastic damage (osmosis bubbles) in glass fiber (GRP) reinforced boat hull.
- Check the moisture before painting or any other surface treatment.
- To detect and identify leaks.
- Finds electrical cables and other metal objects.

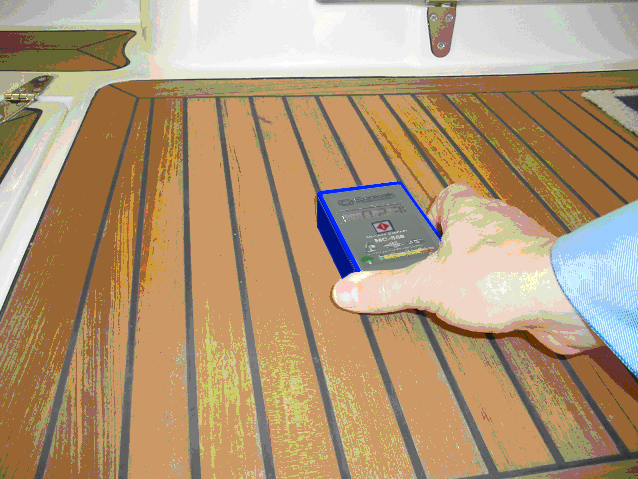

- All types of wood, particleboard etc.
- Glass fiber with synthetic resin, acrylic
- Composite materials of plastic
- such as SMC (Shield Molding Compound)
- Very broad material spectrum by comparison measurement
- Easy to use. Humidity is indicated seconds fast
- Fast and accurate repetitive measurements
- Non-destructive: Capacitive measurement by contacting the material with the underside of the device
- Integrated temperature measuring of the instrument
- Temperature independent within the specified range
- Backlight of the display and thus a
- Clear readout of the measuring value by day and by night
- Charge indicator of the battery
|
Technical specification |
|
|
MEASURING PROCEDURE: |
Electrical field measurment |
|
MEASURING RANGE: |
0 - 30.0% |
|
MEASUREMENT ACCURACY: |
± 1 % |
|
MEASUREMENT DEPTH: |
30 - 40mm |
|
AUTO SHUTDOWN: |
Yes |
|
BATTERY STATUS BAR: |
Ja |
|
OPERATING TEMPERATURE / RH: |
-10°C Žtil +60°C / 0 Žtil 80% |
|
DISPLAY: |
LCD graphical with back light |
|
RESOLUTION: |
0,1% |
|
CASING: |
ABS Plastics |
|
SENSOR: |
PCB bottom sensor |
|
BATTERY: |
9V alkaline |
|
EAN Code |
4250686715026 |
|
DIMENSIONS(LxWxH): |
104 x 64 x 24mm |
|
WEIGHT (C/W.BATTERIE): |
110g |
|
WARRANTY: |
2 years |
