Eijkelkamp

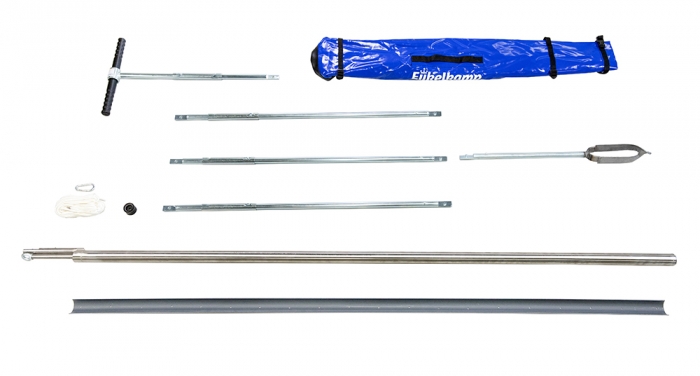

01.09.SA Piston Sampler Set

Soil & CropsSoil Drilling & Sampling

The set is very suitable for sampling less cohesive soil layers below the (ground) water table to a depth up to 5 metres. The piston sampler is also suitable for sampling sediments with a sand content. The samples show little disturbance and therefore are suitable for very accurate profile description. With the set 0109SA a piston sampler is used with a sample gutter to empty the sampler in. The sampler with various accessories can be transported in the field in a carrying bag.

Quantity
1

Specifications

Drilling diameter 4 + 7 cm
Maximum sample depth 5 m
Sample length 200 cm
Sample volume 2.2 liter
Sample diameter 38 mm
