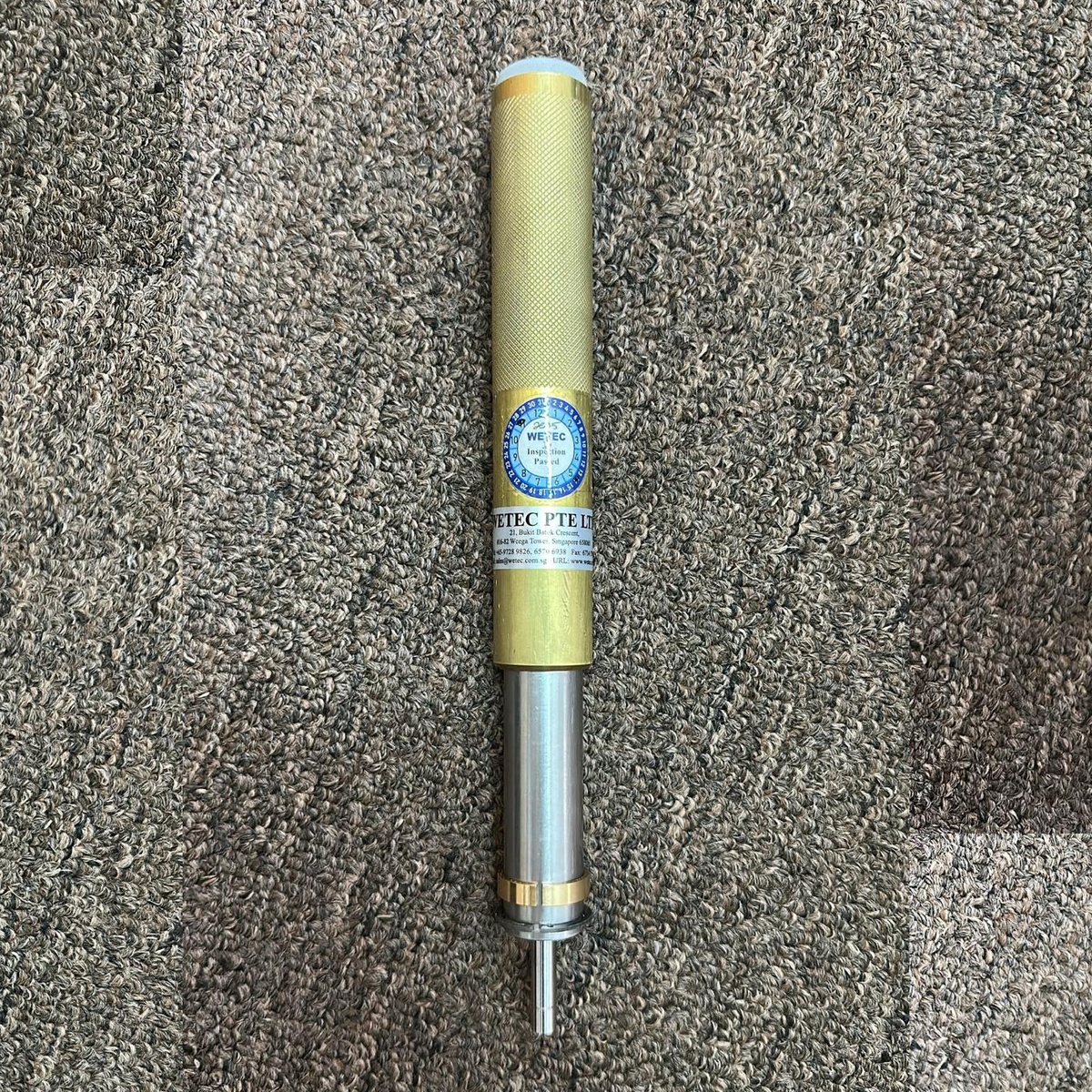

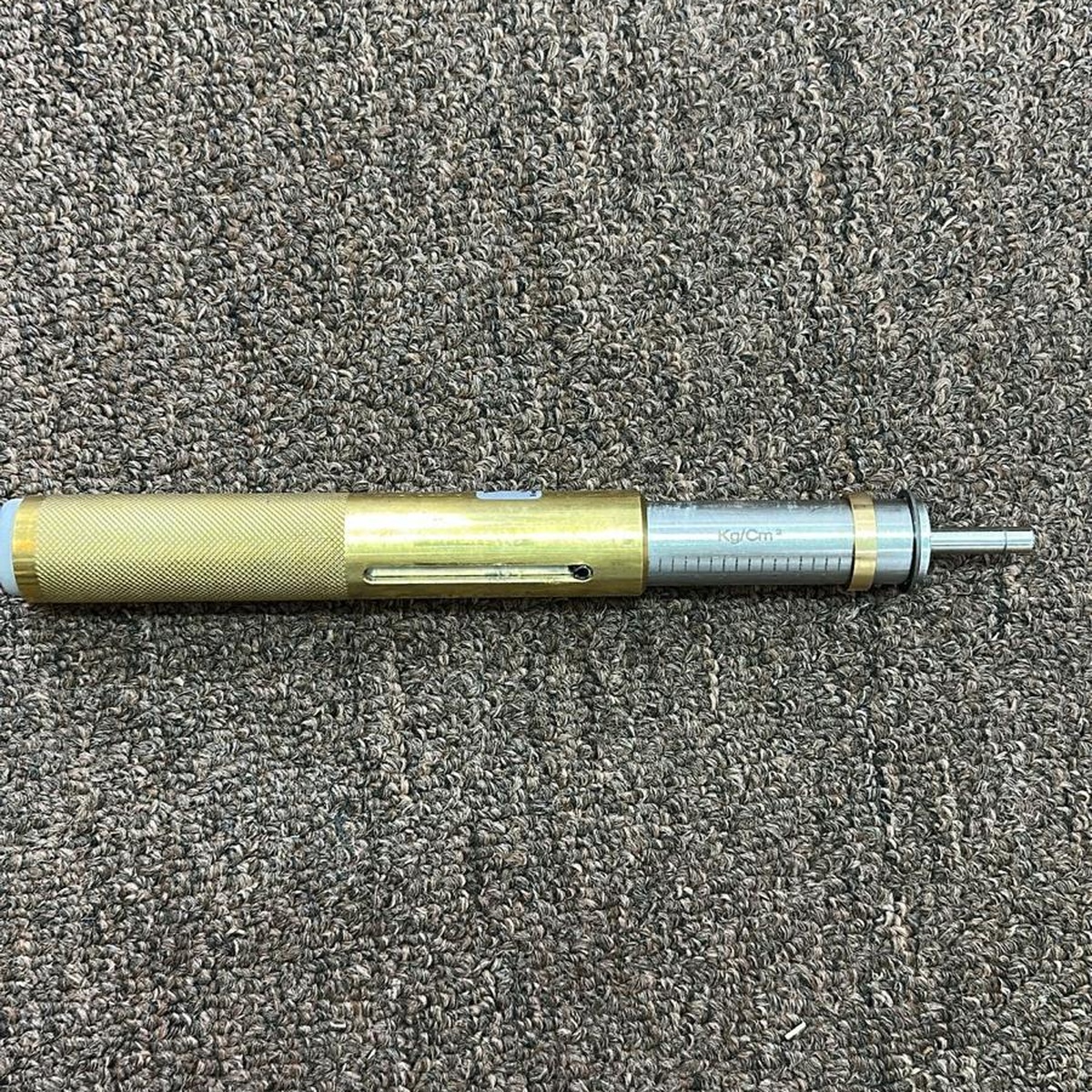

SL131 Pocket Penetrometer 0 - 16kg/cm2

Handheld pocket penetrometer for rapid soil strength checks in the field.

  • Determines soil consistency, shear strength and approximate unconfined compression strength
  • Engraved 0–16 kg/cm² scale with a sliding index that locks at the result
  • Calibrated spring and 6.35 mm needle give a direct reading in kg/cm²
Quantity
1

Overview

The SL131 Pocket Penetrometer is designed for the rapid determination of soil consistency, shear strength and approximate unconfined compression strength. It is intended for quick assessment of soil compressive strength and shear strength in the field.

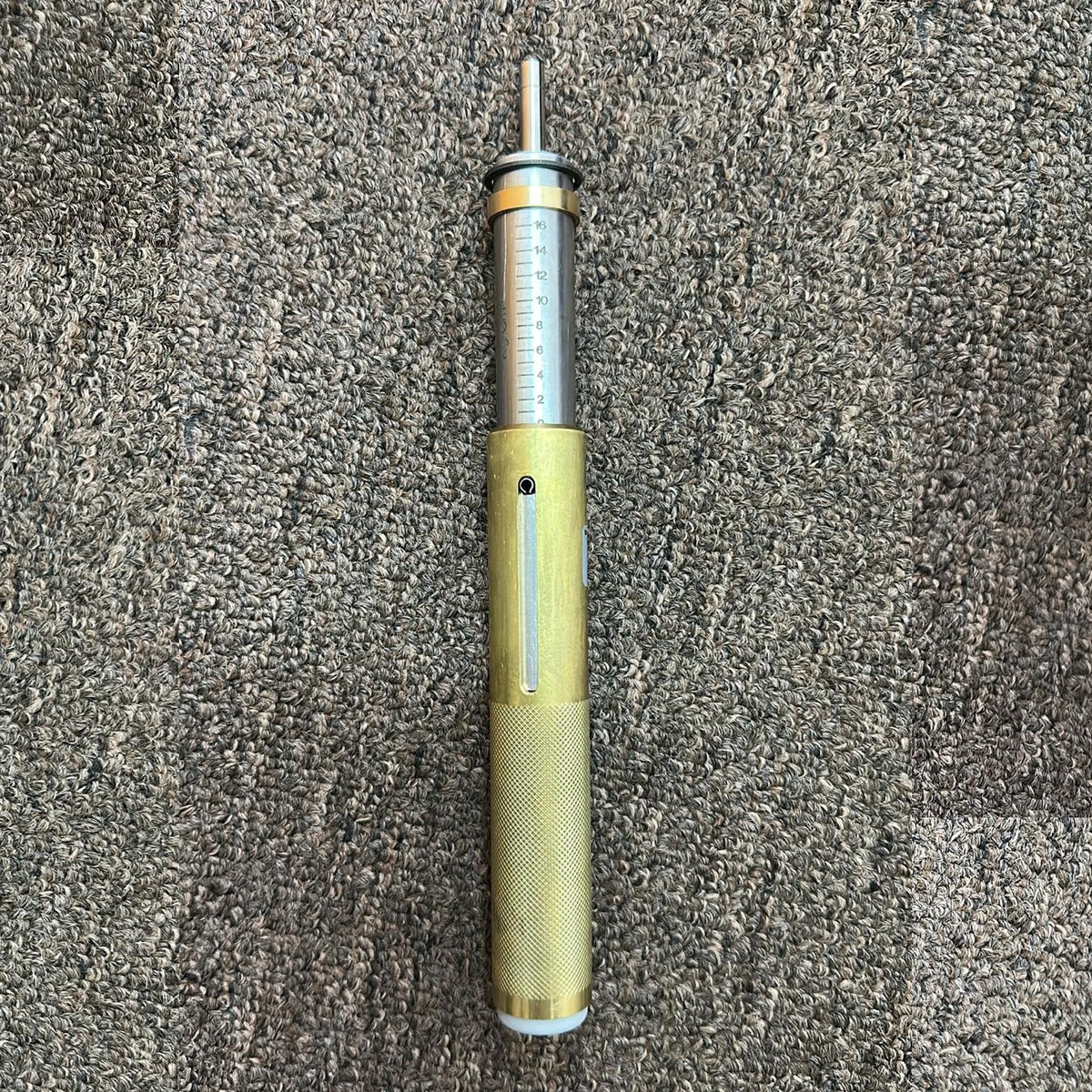

The penetrometer has an engraved numerical scale with a sliding index, which the operator sets to zero before starting the test. During compression of the soil, the index slides automatically and stops on the scale, indicating the test result directly in kg/cm².

Typical applications

  • Determination of soil consistency
  • Shear strength assessment
  • Approximate unconfined compression strength
  • Field testing of soil samples and foundation soil

Key Features

  • Engraved numerical scale with sliding index marker
  • Index is set to zero before the test, then slides automatically and locks in place to indicate the result
  • Direct compression value in kg/cm², based on the ratio of the needle diameter and the calibrated spring
  • Handheld design for quick tests in the field

Specifications

SPECIFICATIONS



Product code

SL131

Scale range

0–16 kg/cm²

Plunger / needle diameter

6.35 mm (1/4 inch)

Reading

Direct, in kg/cm²

Standard

ASTM D2573-94

Approx. weight

0.8 kg





OPERATING INSTRUCTIONS



Step 1

Hold the penetrometer firmly in your hand

Step 2

Place the penetration needle directly onto the soil sample or foundation soil to be tested

Step 3

Apply gradual, even pressure until the needle penetrates the soil up to the visible mark on the needle

Step 4

Perform at least 10 tests on each soil type

Step 5

Disregard inconsistent readings and average the valid results to determine the final value
