Soil Crusher SK300

Soil & CropsGeneral Laboratory Equipment

The Cross Beater Mill SK 300 is suitable for coarse and fine size reduction, either in batches or continuously. It can process medium-hard and brittle materials and is easy to operate. With its adjustable speed of 2,000 to 4,000 rpm the SK 300 is intended for universal use: from sample preparation in laboratories up to preparing sample batches in pilot plants or production facilities.

Quantity

Overview

Suitable for batchwise operation of larger quantities
Adjustable speed for different applications

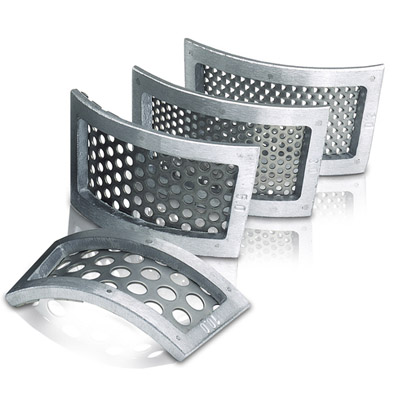

Defined final fineness due to bottom sieves with aperture sizes from 0.12 – 10 mm

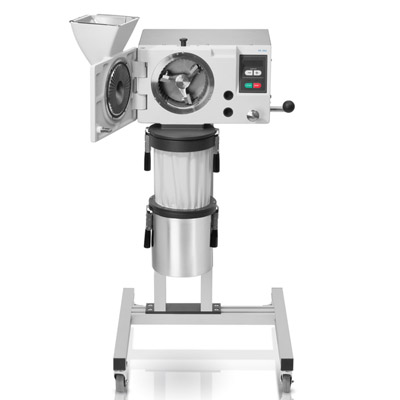

Easy cleaning thanks to exchangeable push-fit grinding insert, rotor and sieve
Wide range of accessories including various collection and feeding systems, rotors and sieves
Electric engine brake
Central locking device

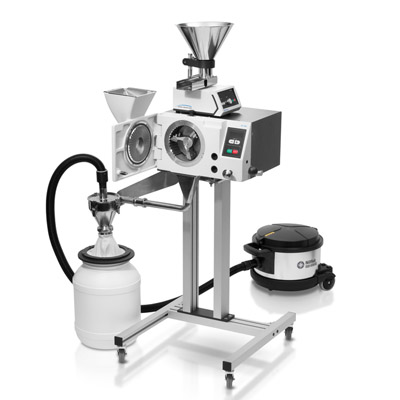

Optional cyclone available

Specifications

GENERAL SPECIFICATIONS

Applications	size reduction
Field of application	agriculture, chemistry / plastics, construction materials, environment / recycling, geology / metallurgy, glass / ceramics
Feed material	medium-hard, brittle
Size reduction principle	impact
Material feed size	< 25 mm
Final fineness	< 100 µm
Speed at 50 Hz (60 Hz)	2000 – 4000 min-1 (in steps of 200 min-1)
Speed setting	yes
Drive power	1.1 kW
