Eijkelkamp
04.17 Split Tube Sampler
Soil & CropsSediment Sampling

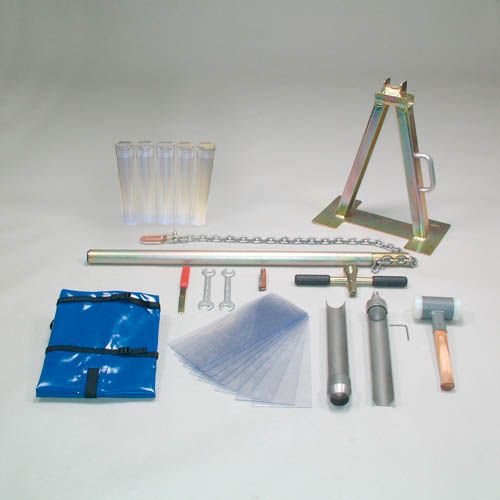

The split tube sampler is an apparatus for rapid undisturbed sampling at the surface. The apparatus is very suitable for research on root systems, fertilizing and soil biology. The set consists of a split tube sampler with a handle with beating head, hammer with nylon heads (shock-absorbing), sample liners, storage containers and a steel lifting jack with lever and chain. The split tube sampler consists of two stainless steel tube halves with a working length of 40 cm.
Quantity
1
Benefits
- Ideal for surface sampling
- Can be hammered
- Easy opening y split tube system
- Stainless steel body
Specifications
GENERAL SPECIFICATIONS
| Connection | screwthread |
|---|---|
| Maximum root thickness | 15 mm |
| Maximum sample depth | 40 cm |
| Product material | stainless steel, iron, other material |
| Sample diameter | 50 mm |
| Sample length | 40 cm |
Downloads
| doc_1464_181004023631 | Downloaddoc_1464_181004023631 |
|---|
