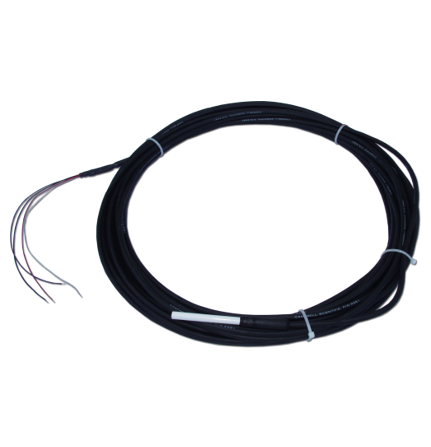

107-L Temperature Probe

ClimateMeteorological Station & Sensors

Th e 107 and 108 are rugged, accurate probes that measure air, soil, and water temperature in a variety of applications. Th ese probes consist of a thermistor encapsulated in an epoxy-fi lled aluminum housing. Th e housing protects the thermistor allowing the probes to be buried or submerged. Th e 107 measures from -35° to +50°C, the 108 from -5° to +95°C.

Quantity

Specification

Sensor Description	BetaTherm 100K6A1IA Thermistor
Tolerance	±0.2°C (over 0° to 50°C range)
Temperature Measurement Range	-35° to +50°C
Temperature Survival Range	-50° to +100°C
Steinhart-Hart Equation Error	≤±0.01°C over measurement range (CRBasic data loggers only)
Polynomial Linearization Error	Typically < ±0.5°C over measurement range (Edlog data loggers only)
Time Constant in Air	30 to 60 s (in a wind speed of 5 m s^-1)
Maximum Submergence	15 m (50 ft)
Probe Diameter	0.76 cm (0.3 in.)
Probe Length	10.4 cm (4.1 in.)
