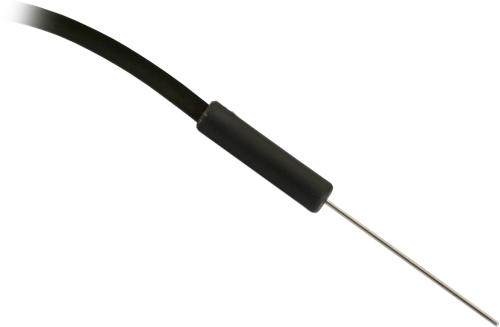

109SS-L Stainless Steel Temperature Probe

ClimateMeteorological Station & Sensors

The 109SS is a rugged, accurate probe that measures soil or water temperature from -40° to +70°C. The 109SS consists of a thermistor encased in a sheath made from grade 316L stainless steel. The rugged stainless-steel sheath protects the thermistor, allowing you to bury or submerge the 109SS in harsh, corrosive environments. This probe also has a fast time response, and it can be easily interfaced with our data loggers.

Quantity

Overview

Designed for harsh, corrosive environments
Fast response time
Wide temperature measurement range
Easy to install or remove
Compatible with most of our current and retired data loggers

Specification

Output	Analog
Operating Temperature Range	-40° to +70°C
Accuracy	Note: Overall probe accuracy is a combination of thermistor interchangeability, bridge-resistor accuracy, and error of the Steinhart-Hart equation. Interchangeability is the principle component error. If needed, an estimate of the interchangeability error for 0 to 50°C, that can be used as the *Offset* parameter of the Therm109() instruction, can be determined with a 1-point or 2-point calibration. ±0.60°C (-40 to +70°C) ±0.49°C (-20 to +70°C)
Maximum Submergence	45.7 m (150 ft) or 434 kPa (63 psi)
Temperature Measurement Range	-40° to +70°C
