13.51 Sediment Level Stave

Soil & CropsSediment Sampling

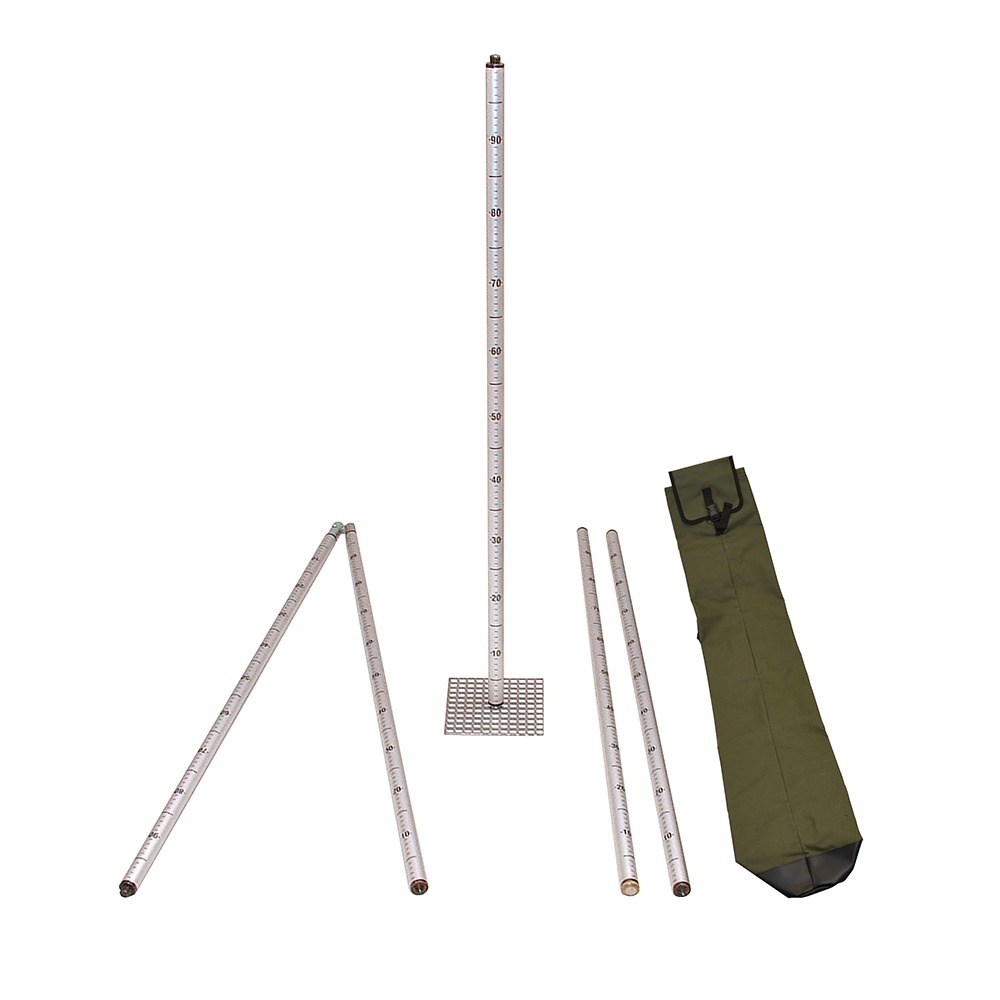

The sediment level stave is part of a standard set for measuring the depth of a sediment layer 4 metres. The set comprises 4 sediment measuring rods of anodic aluminium with screw couplings. The rods are 1 m long and have a diameter of 25 mm. The sediment measuring rods are marked out in 5 cm markings. The set also includes an elbow fitting for the measuring rods so that depth measurements in the sediment can be taken at an angle. A stainless steel grid and core point make it possible to probe the lower boundary of the sediment layer. The set is presented in a carrier carrying bag.

Quantity

Benefits

For determining the depth at the top of the sediment layer at the bottom of the water.
Allows pricking through to the more solid ground underneath.
Elbow joining piece makes it possible to work from the edge.
Standard set: 4 metres, bag, elbow fitting, sediment and core point.
Can be extended to 7 m.
