Campbell Scientific

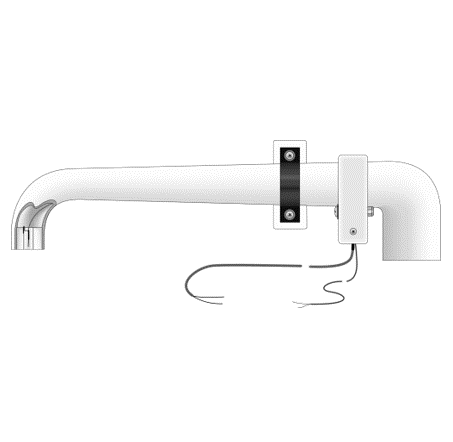

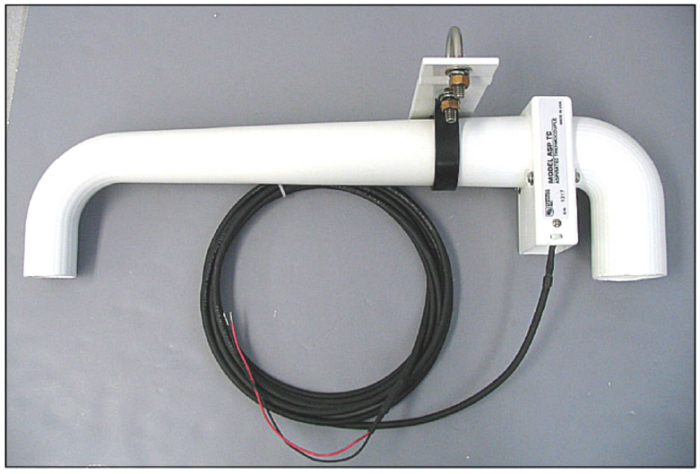

ASPTC-L Aspirated Thermocouple with Mounts

ClimateMeteorological Station & Sensors

The ASPTC-L consists of a type-E fine-wire thermocouple mounted in a fan-aspirated radiation shield to provide highly accurate air temperature measurements. You can use one ASPTC to measure absolute air temperature, or you can use two ASPTCs to make delta temperature measurements.

Quantity

Overview

Uses fine-wire thermocouple for accurate air temperature measurements
Includes aspirated radiation shield
High-powered fan reduces solar loading

Specification

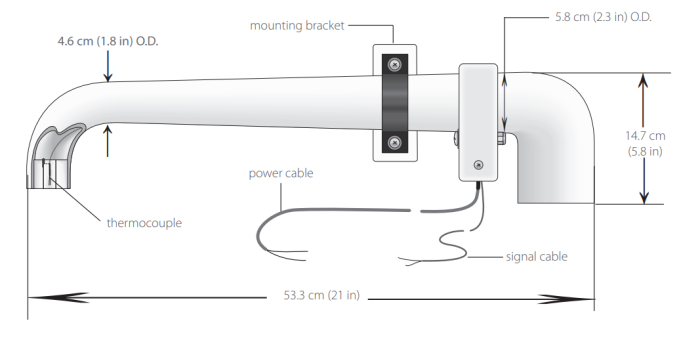

Shield Material	UV-stabilized polyethylene
Large Diameter	5.8 cm (2.3 in.)
Small Diameter	4.6 cm (1.8 in.)
Power Cable Diameter	0.5 cm (0.2 in.)
Signal Cable Diameter	0.3 cm (0.1 in.)
Length	53.3 cm (21 in.)
Height	14.7 cm (5.8 in.)
Weight	0.86 kg (1.9 lb)
