Autoclave HVE-50

Soil & CropsGeneral Laboratory Equipment

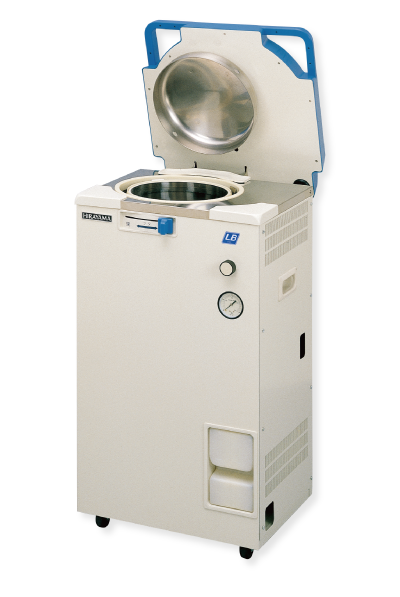

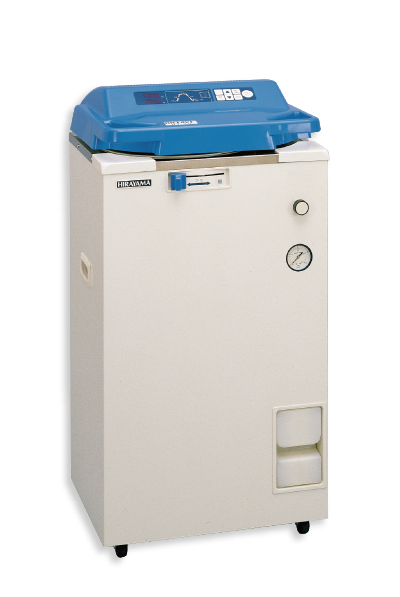

The Hirayama HVE-50 autoclave sterilizer is a self-contained, portable, top-loading autoclave with auto exhaust and warming cycles. Suited for the sterilizations of large fermenter vessels. It has a dual-sensing lid interlock shut prevents lid from opening when the chamber is pressurized or when the temperature exceeds 97°C.

Quantity

Overview

Electro-mechanical lid lock system
Dual interlock mechanism
Pulse exhaust function
Memory function
Warming function that does not coagulate the agar media

Specifications

General Specifications

Product name	HICLAVE HVE series
Model	HVE-50
Effective capacity	50 L
Chamber size (φ x H mm)	300 x 710
Operation mode	3 modes (LIQUID with warming, LIQUID without warming, SOLID)
Maximum working pressure	0.255MPa
Thermometer	Digital display 5℃ - 137℃
Pressure gauge	Analog display 0MPa - 0.4MPa
Outside dimensions (W x D x H mm)	547 x 532 x 1046
Weight (Approximately)	57 kg
