Eijkelkamp

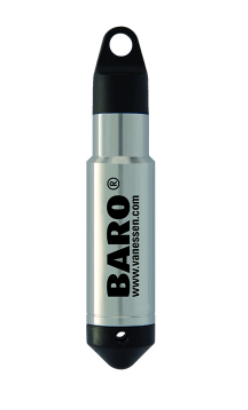

Baro Diver
WaterLevel Measurement & Monitoring
The Baro-Diver® is a datalogger for long-term uninterrupted, real-time atmospheric pressure monitoring. In addition, the Baro-Diver can monitor shallow water levels using a pressure sensor when submerged at a fixed level under the water surface. The pressure sensor measures the equivalent hydrostatic pressure of the water above the sensor diaphragm to calculate the total water depth. The Diver autonomously measures pressure and temperature and records them in its internal memory.
Quantity
1
Overview
Features
- Compact size: Ø 22 mm – length 110 mm
- Memory: 72,000 records of time stamp, pressure and temperature with backup
- Continuous and fixed length memory
Benefits
- Easy installation
- Cost effective frequent, long-term measuring
- Reliable and accurate data
- Low maintenance, No user calibration
Specification
General
| Length | 110mm |
|---|---|
| Diameter | 22mm |
| Memory | 72,000 measurements with backup |
| Housing | Stainless steel 316L |
| Weight | 104g |
| Battery Life | up to 10 years (dependent on usage) |
| Sample Interval | 0.5 second to 99 hours |
| Sample Methods | Fixed interval |
Pressure
| Part No | DI800 | Unit |
|---|---|---|
| Range | 1.5 | m |
| Accuracy* | ±0.5 | cmH2O |
Temperature
| Value | Unit | |
| Range | -20 .. +80 | °C |
| Accuracy | ±0.1 | °C |
| Resolution | 0.01 | °C |
Downloads
| doc_1113_181004023607 | Downloaddoc_1113_181004023607 |
|---|
