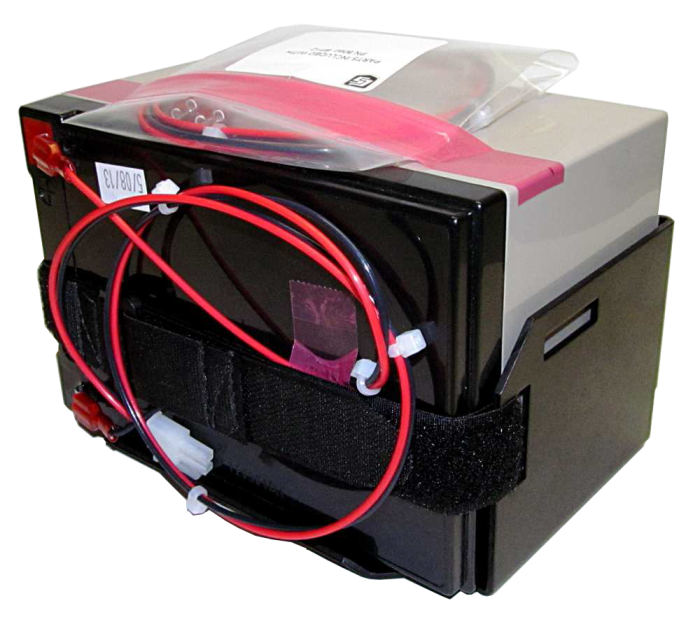

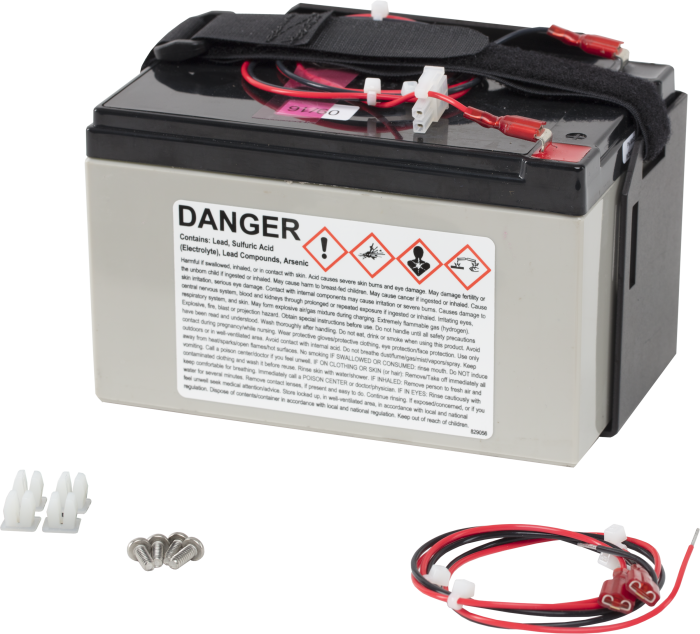

BP12 12 Ahr Battery Pack

ClimatePower Supplies

The BP12 requires a regulated charging source (provided by the CH150 or CH200 regulator connected to an unregulated solar panel or a wall charger). The BP12 includes a 24 in. attached cable that terminates in a connector for attaching the battery to a CH150 or CH200 regulator.

Quantity

Overview

The BP12 is a rechargeable, 12 V, 12 Ah battery pack that can power a Campbell Scientific system that has components that have above-average power requirements, such as satellite transmitters.

Specification

Battery Type	Sealed lead acid (SLA)
UL Approval File Number	MH16464
Output Voltage	12 Vdc
Nominal Rating	12 Ah
Battery Cables Length	0.6 m (2 ft)
Dimensions	15.0 x 9.4 x 8.9 cm (5.9 x 3.7 x 3.5 in.) for battery only 19.1 x 10.3 x 9.7 cm (7.5 x 4.0 x 3.8 in.) for battery with mounting bracket
Weight	4.4 kg (9.8 lb)
