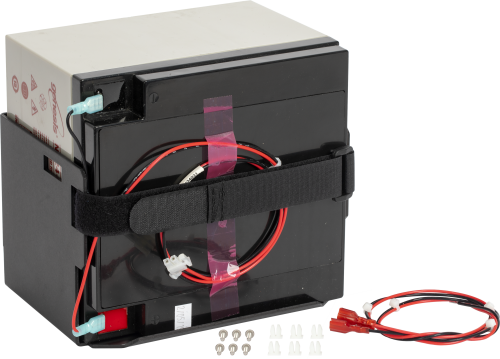

BP24 24 Ahr Battery Pack

ClimatePower Supplies

The BP24 requires a regulated charging source (provided by the CH150 or CH200 regulator connected to an unregulated solar panel or a wall charger). The BP24 includes a 24 in. attached cable that terminates in a connector for attaching the battery to a CH150 or CH200 regulator.

Quantity

Overview

The BP24 is a rechargeable 12 Vdc, 24 Ah battery pack that can power a Campbell Scientific system.
It is intended for high-current-drain systems, such as satellite transmitters, that require more power.

Specification

Battery Type	Sealed lead acid (SLA)
UL Approval File Number	MH16464
Output Voltage	12 Vdc
Nominal Rating	24 Ah
Battery Cables Length	0.6 m (2 ft)
Dimensions	16.5 x 17.5 x 12.5 cm (6.5 x 6.9 x 4.9 in.) for battery only 21.3 x 17.7 x 13.0 cm (8.4 x 7.0 x 5.1 in.) battery with mounting bracket
Weight	10.2 kg (22.4 lb)
