BPALK 12 V Alkaline Battery Pack thumbnail 1

Campbell Scientific

BPALK 12 V Alkaline Battery Pack

ClimatePower Supplies

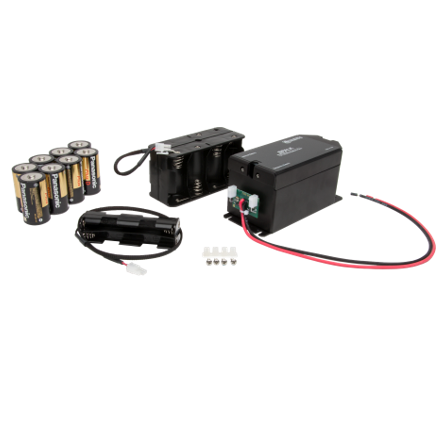

The BPALK can power a CR500, CR510, CR10, CR10X, CR800, CR850, or CR1000 datalogger, as well as the datalogger's peripherals. It consists of the alkaline batteries, battery connectors, and the temporary 12 V AA alkaline battery pack used during D cell replacement.

Quantity

Overview

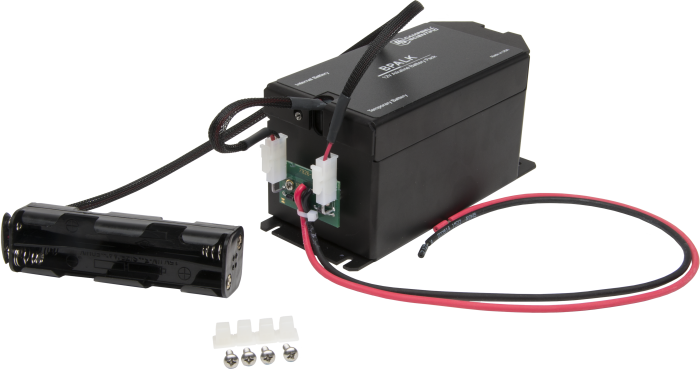

The BPALK is a battery pack for powering dataloggers and peripherals. The BPALK includes eight replaceable D cell alkaline batteries.
To ensure power is not lost while the D cell batteries are replaced, the BPALK has a 12 V backup battery pack that uses eight AA batteries (not included).
The BPALK can also be used as a separate auxiliary 12 V power supply to power remotely located sensors or peripherals.The system must have a common ground.
Alkaline batteries are not rechargeable, and their Amp hour ratings decrease with temperature extremes.
Alkaline batteries may leak when used outside the temperature range of -25° to +50°C, or when the battery voltage drops below 9.6 V.

Specification

Battery Type	Alkaline
Nominal Rating	7.5 Ah (@ 20°C)
Batteries Needed	8 not-rechargeable alkaline D cells (included)
Output Voltage	12 Vdc
Operating Temperature Range	-25° to +50°C
Dimensions	15.2 x 7.4 x 8.0 cm (6.0 x 2.9 x 3.2 in.) without connectors and mounts 18.1 x 7.4 x 8.0 cm (7.1 x 2.9 x 3.1 in.) with connectors and mounts
Weight	1.8 kg (4 lb)
