BRS Magnet Extensometers

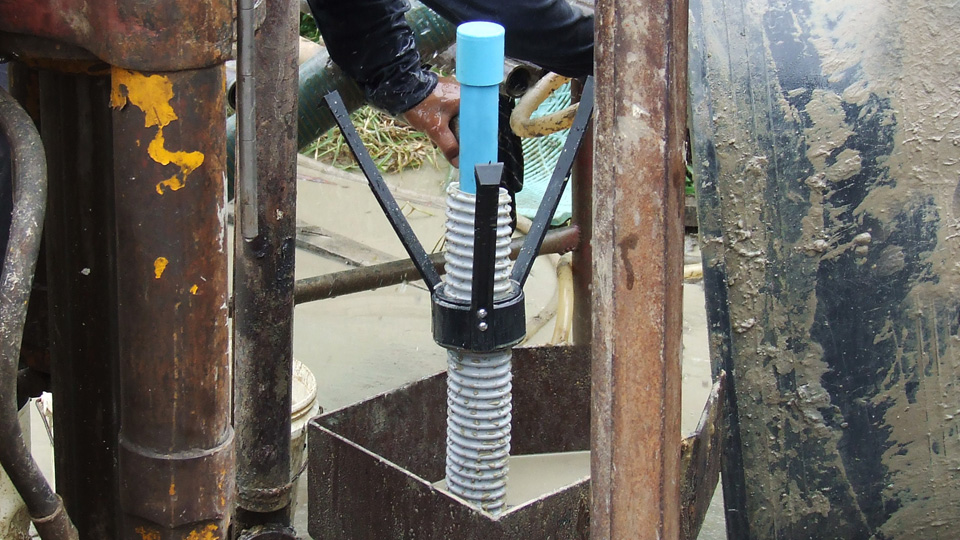

The BRS Magnet Extensometers is a system for measuring either settlement or heave at various depths in soil, embankments, earth fill dams and dikes. The system consists of an access tube with external corrugate pipe, magnet rings, bottom section with datum ring and suspension head. Magnet rings (targets) are fixed externally to the access tube in the ground where movement may occur. Magnet rings move together with surrounding soil along the axis of the access tube. Readings are obtained with a portable readout, lowering the reed switch probe through the access tube. Comparison of surveys taken over time provide profiles of ground. More info.↗
