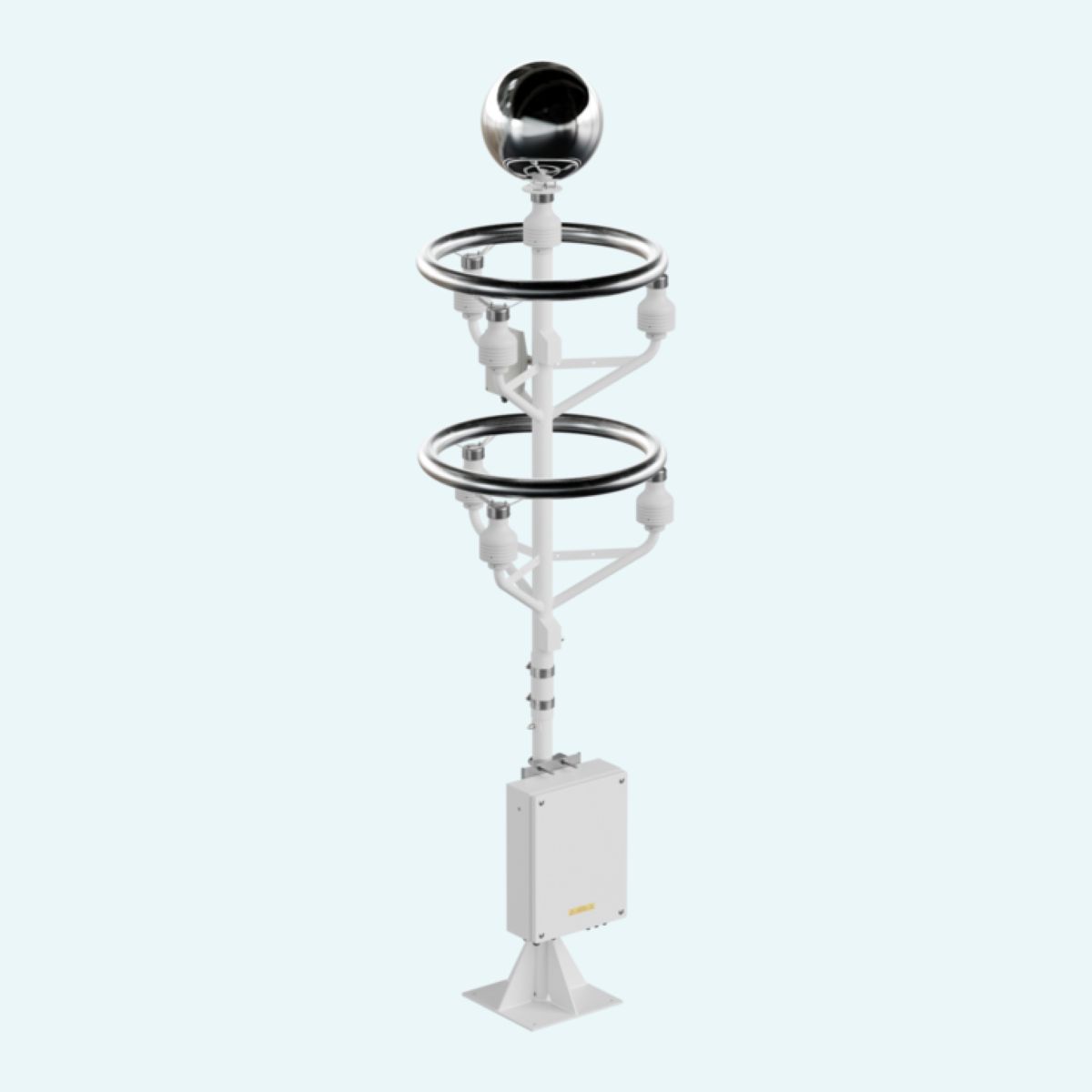

BTD-350 Marine Thunderstorm Detector thumbnail 2

Senseca

BTD-350 Marine Thunderstorm Detector


Quasi-electrostatic lightning detector for marine and offshore safety monitoring.

  • Detects cloud-to-cloud, cloud-to-ground, cloud-to-air and intra-cloud lightning

  • Monitors atmospheric electric fields and charged precipitation for early storm warnings

  • RS422 or Ethernet output, with optional relay alarms

Quantity
1

Overview

The Senseca BTD-350 is a high-performance lightning detector designed for marine and offshore safety applications. Using a quasi-electrostatic sensing principle, it detects major lightning types up to 83 km while monitoring atmospheric electric field changes and charged precipitation to provide early storm warnings with minimal false alarms.

Built for harsh marine environments, the BTD-350 features robust stainless steel and powder-coated aluminium construction, RS422 or Ethernet connectivity, and optional relay outputs for local alarm systems. It supports reliable lightning monitoring for vessels, offshore installations, and helidecks.

Typical Applications

  • Marine vessels and ship safety

  • Offshore oil and gas platforms

  • Helideck lightning monitoring

  • Offshore installations and facilities

  • Marine lightning warning systems

  • Coastal and port facilities

Key Features

  • Quasi-electrostatic lightning detection technology

  • Detects cloud-to-cloud, cloud-to-ground, cloud-to-air and intra-cloud lightning discharges

  • Lightning detection range up to 83 km

  • Monitors atmospheric electric field changes and charged precipitation

  • 95% detection efficiency for a single lightning flash

  • False alarm rate below 2%

  • RS422 serial or Ethernet communication

  • Optional relay module with three volt-free relay contacts

  • Optional direction-finding module with 1° resolution

  • IP66-rated construction for marine and offshore environments

  • Operating temperature range from -40 °C to +60 °C

  • Meets EN 50536 Class 1 and IEC 62793 Class A requirements

Benefits

  • Early lightning warnings for enhanced marine and offshore safety

  • Reliable detection with a false alarm rate below 2%

  • Wide-area lightning detection up to 83 km

  • High immunity to electromagnetic interference

  • Flexible connectivity via RS422 or Ethernet

  • Durable construction for harsh marine environments

  • Early storm warnings through atmospheric electric field monitoring

Specifications

Lightning Detection

Measuring principle

Passive quasi-electrostatic sensing

Detection range

Up to 83 km

Lightning types detected

Cloud-to-cloud, cloud-to-ground, cloud-to-air, and intra-cloud

Detection efficiency

95% for a single lightning flash

Storm detection efficiency

99–99.9% for storms with multiple flashes within 56 km

False alarm rate

Below 2%

Range resolution

10 m

Monitoring capability

Atmospheric electric field changes and charged precipitation





Outputs and Communication

Communication interfaces

RS422 serial or Ethernet

Data reporting

Self-test status, thunderstorm warning status, flash time, and flash range

Optional relay module

Three volt-free relay contacts

Relay functions

Caution, warning, and alert states

Optional direction-finding module

Storm direction information with 1° resolution

User configuration

Adjustable warning thresholds and relay disabled times





Environmental and Mechanical

Operating temperature

-40 °C to +60 °C

Protection degree

IP66

Housing material

Stainless steel and powder-coated aluminium

Environmental qualifications

Marine EMC, salt spray, and vibration





Compliance and Software

Applicable standards

EN 50536 Class 1 and IEC 62793 Class A

Monitoring software

PC-based display and logging





Alarm and Configuration

Alarm states

Caution, warning, and alert

Warning thresholds

User-configurable

Relay disabled times

User-configurable

Local alarm activation

Optional relay module

Drawing
