Wagner Meters

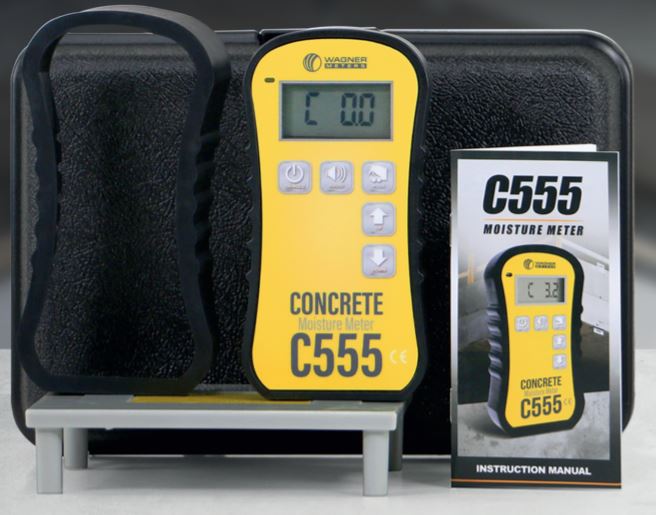

C555 Concrete Moisture Meter

ClimateMoisture Meters

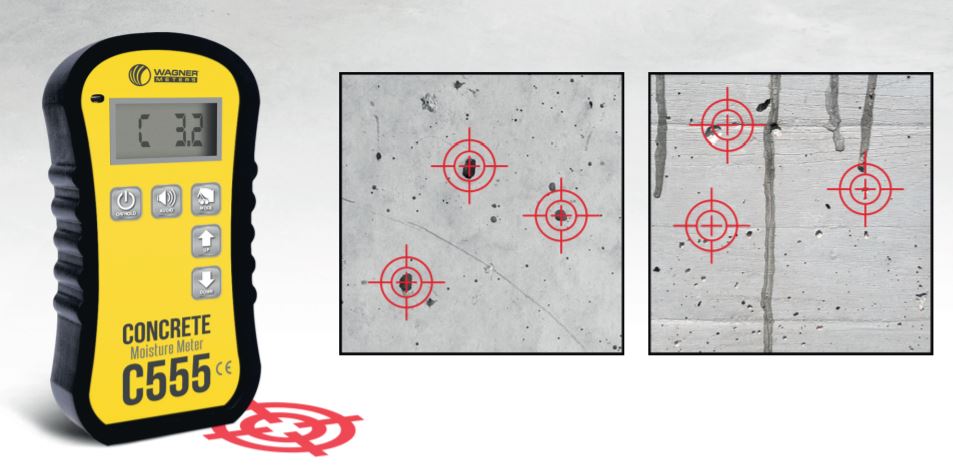

The C555 Concrete Moisture Meter provides fast, non-destructive preliminary moisture measurements on smooth, firm concrete to help pin point problem areas and determine where to place RapidRH® L6 Smart Sensors.

Quantity

Overview

Handheld concrete moisture meter
Measures to 0.5” depth
Relative mode for other concrete-similar materials
A scuff-resistant Teflon sensor pad
ASTM F2659 compliant
Digital display
Measures to 0.5-inch depth
Integrated ambient temperature and RH sensors
Moisture scale reads from 0% to 6.9%
Audio threshold alarm
Relative mode can be used on other concrete-similar materials such as concrete block
Scuff-resistant Teflon sensor pad

Specification

Scanning Area	2.0 inches (50mm) x 2.5 inches (63mm)
Measurement Ranges	Moisture range for concrete:0.1 to 6.9
Storage Temperature and Humidity	+50˚F to +90˚F (+10˚C to +32˚C), Maximum relative humidity of 95%, non-condensing
Operating Temperature	+32˚F to +110˚F (+0˚C to +43˚C)
Power	9-volt battery
Auto Power Shut-Down	60 seconds
Dimensions with Boot	Length: 5.75 inches (146mm) Width: 3.0 inches (76mm) Thickness: 1.0 inches (25mm)
Weight with Boot	7.2 oz. (204g)
