ChemScan

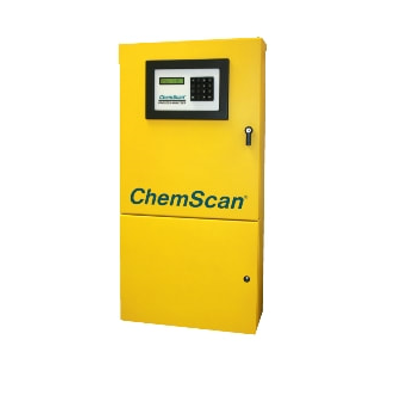

ChemScan UV Series Analyzers

WaterWater Quality Measurement

ChemScan on-line analyzers provide operators and control systems with timely process chemistry measurements. These data are used to control and optimize the process resulting in increased plant capability, reduced energy and chemical usage along with monitoring the process for compliance.

Quantity

Overview

Features:

Internal manifold with inlets for automatic zeroing, automatic cleaning, calibration samples and process sample lines
Internal logs for analysis values and zeroing measurements
Exclusive, rugged spectrograph with 256 pixel photodiode array
Long service life xenon flash lamp
Internal computer to apply chemometric analysis algorithms
Self monitoring diagnostics and alarms
External keypad and backlit liquid crystal display
Dedicated analog output for each parameter plus standard RS-232 ASCII or optional MODBUS outputs
Custom configured outputs
Temperature controlled NEMA-4 electronics enclosure
All components are of our own design. No danger of obsolescence over the decades.

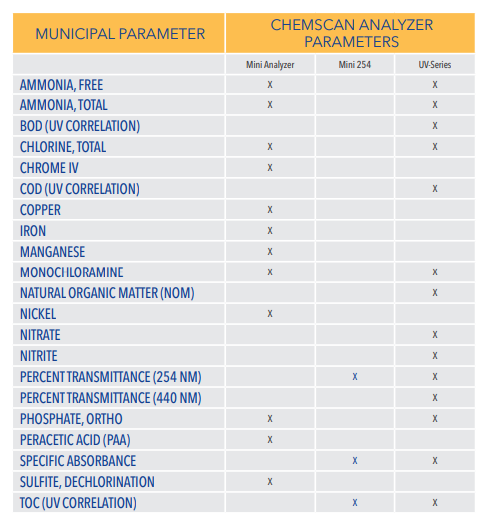

Models Available

ChemScan Analyzer	Parameters
ChemScan UV-2150/S	FNH3, TNH3, Monochloramine, Cl2, Chloramination
ChemScan UV-2150/N	NH3, NO3 Aeration Rate
ChemScan UV-2150/NoP	NO3, PO4 Chem Feed
ChemScan UV-2150/NHoP	NH3, PO4 Chem Feed
ChemScan UV-2150	See List (1 nutrient) Nutrient Control
ChemScan UV-3150	See List (1 nutrient) Nutrient Control
ChemScan UV-4100	See List (Up to 4) Nutrient Control
ChemScan UV-6101	See List (Up to 8) Nutrient Control
