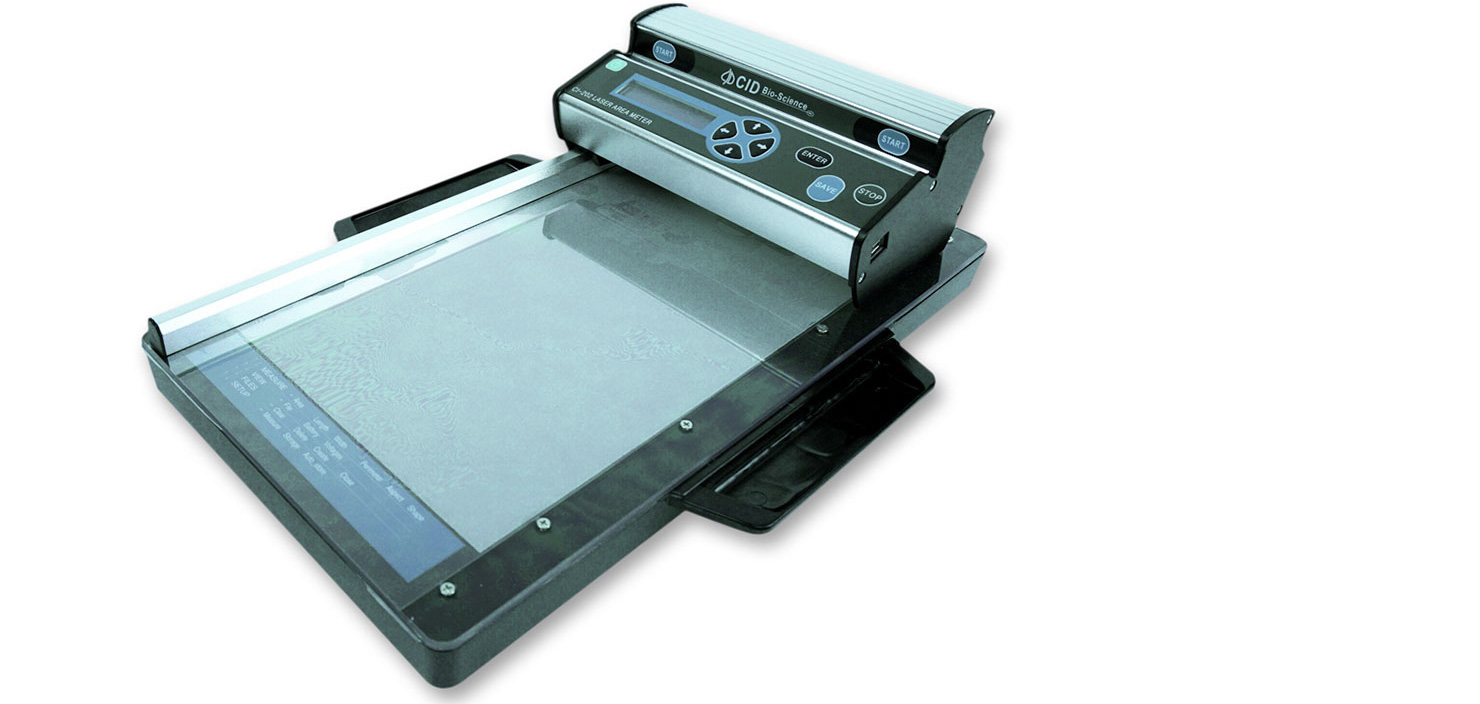

CI-202 Portable Laser Leaf Area Meter

Soil & CropsLeaf Area Meter

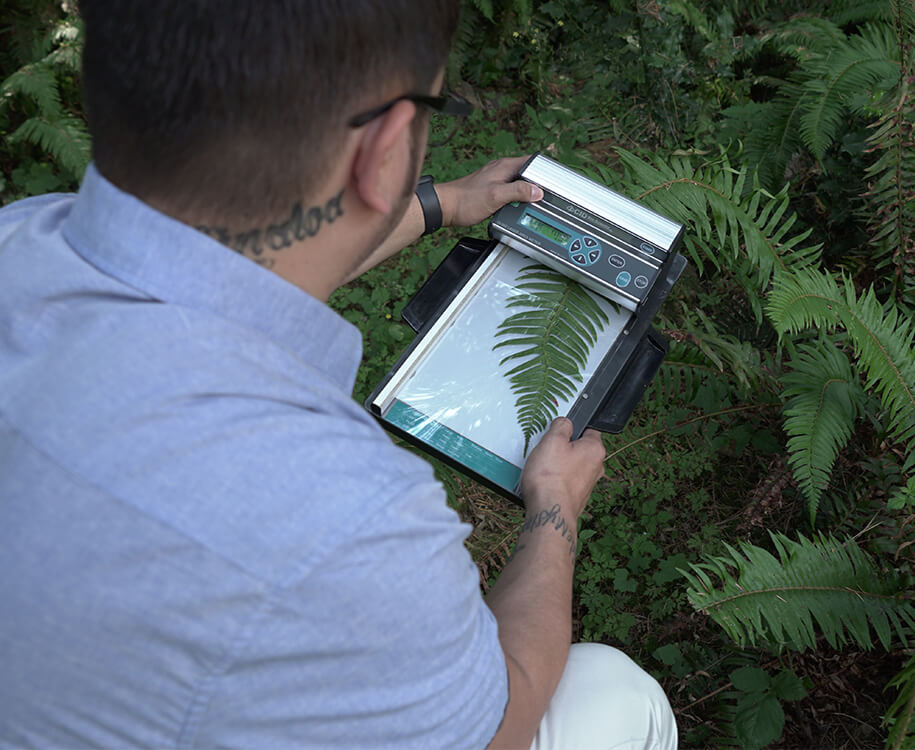

Gather data faster in the field or lab Durable and self-contained, the CI-202 Portable Laser Leaf Area Meter measures virtually any type of leaf, needle, or seed.

Quantity

Overview

The CI-202 measures length, width, area, and perimeter, and calculates ratio and shape factor once a measurement is completed.

Each time the control unit detects that the laser scanner has progressed 1 mm, the computer checks to see if the width reading is non-zero. If the width measurement is non-zero, the computer takes the following actions:

The length measurement is increased by 1 mm.
The width measurement is added to the area accumulator.
If the width measurement is greater than the currently stored maximum width, the maximum width is updated.

Specification

Measuring Thickness	1.5 cm maximum
Measuring Width	15 cm maximum
Measuring Length	36 cm
Scanner	670 nm laser
Resolution	0.01cm2
Accuracy	±1% for samples >10 cm²
Interface	USB 2.0
Memory Size	8,000 measurements
Dimensions	38.5L x 29W x 12.5H cm
Weight	1,500g
Display	16 characters x 2 lines LCD
Scanning Speed	200 mm/second
Battery	7.2 volt rechargeable NiMH
Battery Capacity	Over 250 scans per charge
Operating Temperature	0-50 °C
