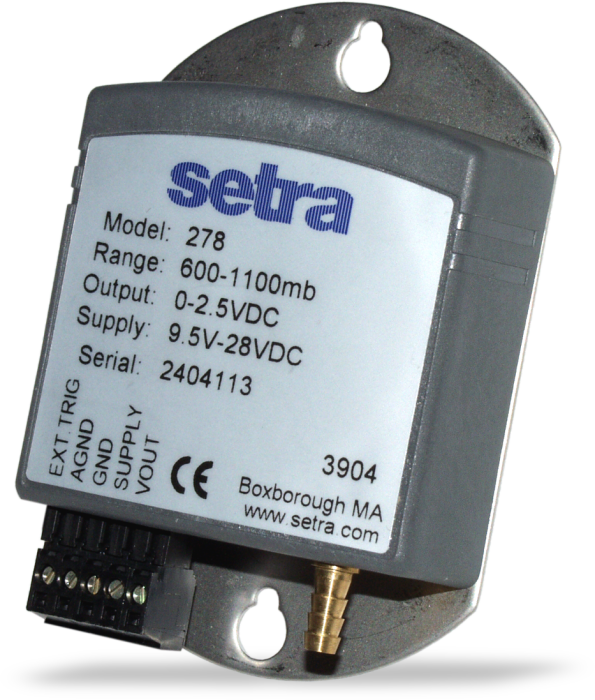

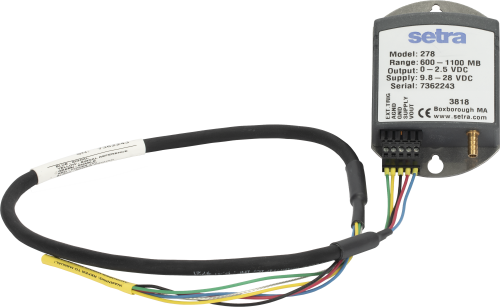

CS100 Barometric Pressure Sensors

ClimateMeteorological Station & Sensors

The CS100 measures barometric pressure for the range of 600 to 1100 hPa (mBar). This range equates to from below sea level (as in a mine) up to 12,000 feet above sea level. Designed for use in environmental applications, the CS100 is compatible with all Campbell Scientific data loggers.

Quantity

Overview

Optimized to mount in Campbell Scientific enclosures
Low power consumption
Three-year warranty
500 to 1100 hPa (mBar) and 800 to 1100 hPa (mBar) versions also available by special order—contact Campbell Scientific
Integral switching circuit limits power consumption to measurement cycle

Specification

Measurement Description	Barometric pressure
Signal Type/Output	Analog voltage
Pressure Range	600 to 1100 hPa
Long-Term Stability	±0.1 hPa per year
Response Time	< 100 ms
Resolution	±0.01 hPa
Excitation	9.5 to 28 Vdc
Elevation	~609.6 m (2,000 ft) below sea level (as in a mine) to 3,657.6 m (12,000 ft) above sea level
Accuracy	Accuracy refers to the root sum squared (RSS) of end point non-linearity, hysteresis, repeatability, and calibration uncertainty. ±0.5 hPa (@ +20°C) ±1.0 hPa (@ 0° to 40°C) ±1.5 hPa (@ -20° to +50°C) ±2.0 hPa (@ -40° to +60°C)
Linearity	±0.4 hPa
Hysteresis	±0.05 hPa
Repeatability	±0.03 hPa
Signal Output	0 to 2.5 Vdc
Warm-up Time	< 1 s
External Trigger Voltage	0 Vdc (sleep mode) 3 to 28 Vdc (operating mode)
Current Consumption	< 3 mA (active) < 1 µΑ (sleep mode)
Temperature Range	-40° to +60°C
Cable Diameter	0.8 cm (0.3 in.)
Cable Length	0.8 m (2.5 ft)
Dimensions	9.1 x 6.1 x 2.5 cm (3.6 x 2.4 x 1.0 in.)
Weight	135 g (4.8 oz)
