CS106 Barometer

ClimateMeteorological Station & Sensors

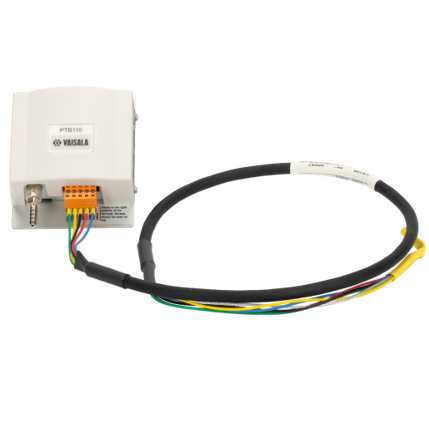

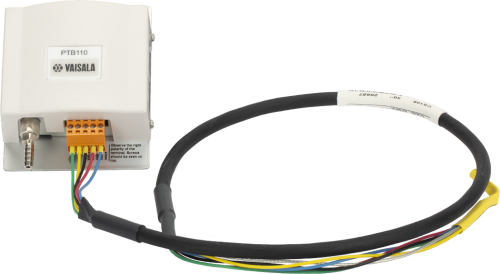

The CS106, manufactured by Vaisala, measures barometric pressure for the range of 500 to 1100 hPa (mBar). This range equates to from below sea level (as in a mine) to over 15,000 feet above sea level. Designed for use in environmental applications, the CS106 is compatible with most Campbell Scientific data loggers. The CS106 has an attached 76.2 cm (30 in.) cable.

Quantity

Overview

The CS106, manufactured by Vaisala, measures barometric pressure for the range of 500 to 1100 hPa (mBar).
This range equates to from below sea level (as in a mine) to over 15,000 feet above sea level.
Designed for use in environmental applications, the CS106 is compatible with most Campbell Scientific data loggers.
The CS106 has an attached 76.2 cm (30 in.) cable.
Optimized to mount in Campbell Scientific enclosures
Integral switching circuit limits power consumption to measurement cycle
Three-year warranty

Specification

Pressure Range	500 to 1100 hPa
Long-Term Stability	± 0.1 hPa per year
Settling Time	1 s to reach full accuracy after power-up
Response Time	500 ms to reach full accuracy after a pressure step
Output Voltage	0 to 2.5 Vdc
Supply Voltage	10 to 30 Vdc
Accuracy	Accuracy refers to the root sum squared (RSS) of end point non-linearity, hysteresis, repeatability, and calibration uncertainty. ±0.3 hPa (@ +20°C) ±0.6 hPa (@ 0° to 40°C) ±1.0 hPa (@ -20° to +45°C) ±1.5 hPa (@ -40° to +60°C)
