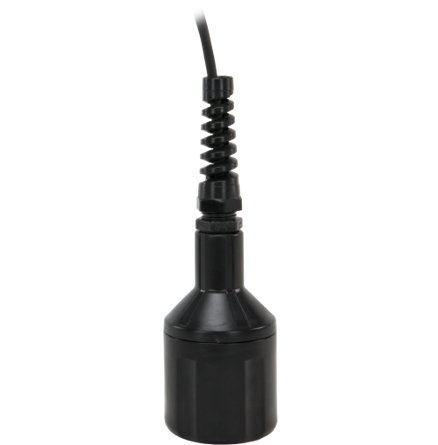

CS511-L Dissolved Oxygen Probe

ClimateMeteorological Station & Sensors

The CS511, manufactured by Sensorex, is a submersible, rugged, low-maintenance sensor that senses dissolved oxygen in a medium (typically water). It consists of a self-polarizing galvanic cell that generates a millivolt signal proportional to the amount of oxygen present in the measured medium (typically water).

Quantity

Overview

The CS511, manufactured by Sensorex, is a submersible, rugged, low-maintenance sensor that senses dissolved oxygen in a medium (typically water).
It consists of a self-polarizing galvanic cell that generates a millivolt signal proportional to the amount of oxygen present in the measured medium (typically water).
In-line thermistor provides automatic temperature compensation
Compatible with most Campbell Scientific dataloggers

Specification

Measurement Range	0.5 to 50 ppm (for O₂)
Accuracy	±2%
Output	33 mV ± 9 mV (100% saturation); < 2 mV (0% saturation)
Response Time	5 min from 100% to 0% oxygen
Minimum Water Velocity	5 cm s^-1 (2 in. s^-1) across membrane
Pressure	0 to 100 psig
Minimum Submersion Depth	6.35 cm (2.5 in.)
