Campbell Scientific

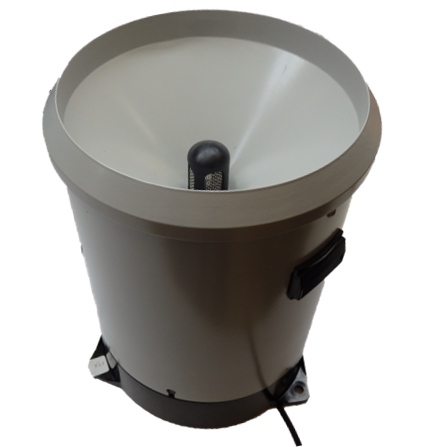

CS701-L HS Rain Gauge (Plastic Base)

ClimateMeteorological Station & Sensors

The CS701-L is recognised as the world standard for measuring rainfall and precipitation in remote and unattended locations. With a synthetic ceramic coated brass bucket and a plastic base. The integrated syphon mechanism delivers high levels of accuracy across a broad range of rainfall intensities. It measures precipitation in 0.2 mm increments. The CS701 is ideal for locations where intense rainfall events may occur. This tipping bucket is compatible with all Campbell Scientific dataloggers, and is used in environmental monitoring applications.

Quantity

Overview

World standard 200mm diameter catch
Accuracy not affected by rainfall intensity
Long term stable calibration
Minimal maintenance required
Used world-wide in a range of hostile environments

Specification

Sensor Type	Tipping bucket with siphon
Accuracy	±2% @ 0 to 250 mm/hr; ±3% @ 250 to 500 mm/hr
Resolution	0.2 mm
Measurement Range	0 to 700 mm/hr
Temperature Range	-20° to 70°C
Humidity	0 to 100%
