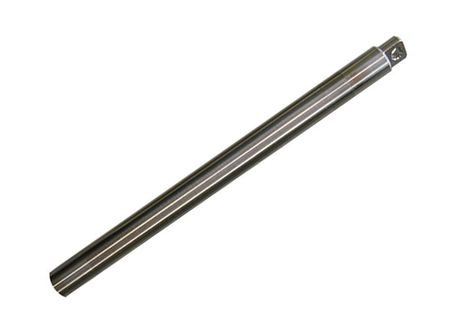

Data Logger Baro-Dipper

WaterLevel Measurement & MonitoringData Logger (Water)

Measuring data collector with Baro sensor optimised for precise detection of atmospheric pressure

Quantity

Overview

High-performance:
32-bit microprocessor with 16 MB of memory for 1,200,000 readings

Virtually maintenance free:
No battery replacement necessary, no running operational costs

Slim:
Built from 1 "tube diameter

Accurate and reliable:
+/- 1,5 mbar Accuracy

Robust:
Standard 1.4404 Stainless steel housing or high grade 1.4539 stainless steel housing (option)

User-friendly:
Two APPs for configuration and data read-out for the Baro-Dipper are available. Operating software for beginners SEBAConfig (Windows) offers a user-friendly interface (Wizard) for various routine tasks. With SEBAConfigAPP (Android, iOS) and the BlueCon module, comfortable wireless communication via Bluetooth is possible with a smartphone or tablet and the logger.

Specification

Air Pressure

Sensor	Baro sensor
Measuring Range	10 - 1100mbar
Measuring Accuracy	± 1.5 mbar
Dissolution	15 bit (~ 0.03mbar)

Logger

Controller	32 Bit Flash controller with integrated WatchDog RTC-IC Real Time Clock
Memory Capacity	16 MB (= 1,120,000 readings)
Save Interval	30 s - 99 hours
Channels	Max. 32 (including air pressure, battery voltage)
Measurement Routines	Single value, average value, event clock, Delta mode
Communication Interface	RS485
Operation	Interface Converter (RS 485/USB), BlueCon (Bluetooth)
Power Supply	2 x 3.6 V lithium AA size batteries
Service Life	> 4 years at 60min intervals

Housing

Material	1.4404 standard stainless steel or high grade 1.4539 stainless steel (optional)
Dimensions	Ø 22 mm, length: 300 mm
Protection Class	IP68

Others

Operating Temperature	-40°C - +85°C
Suspension Unit	None (Default) Diameter-dependent insert panels for SEBA caps starting from a 2" diameter pipe (optional)
Measuring Device Protection	Protective caps for the RS485 interface (dust and moisture protection)
Cable	Kevlar cable
