Tramex

DEC Scanner

ClimateMoisture Meters

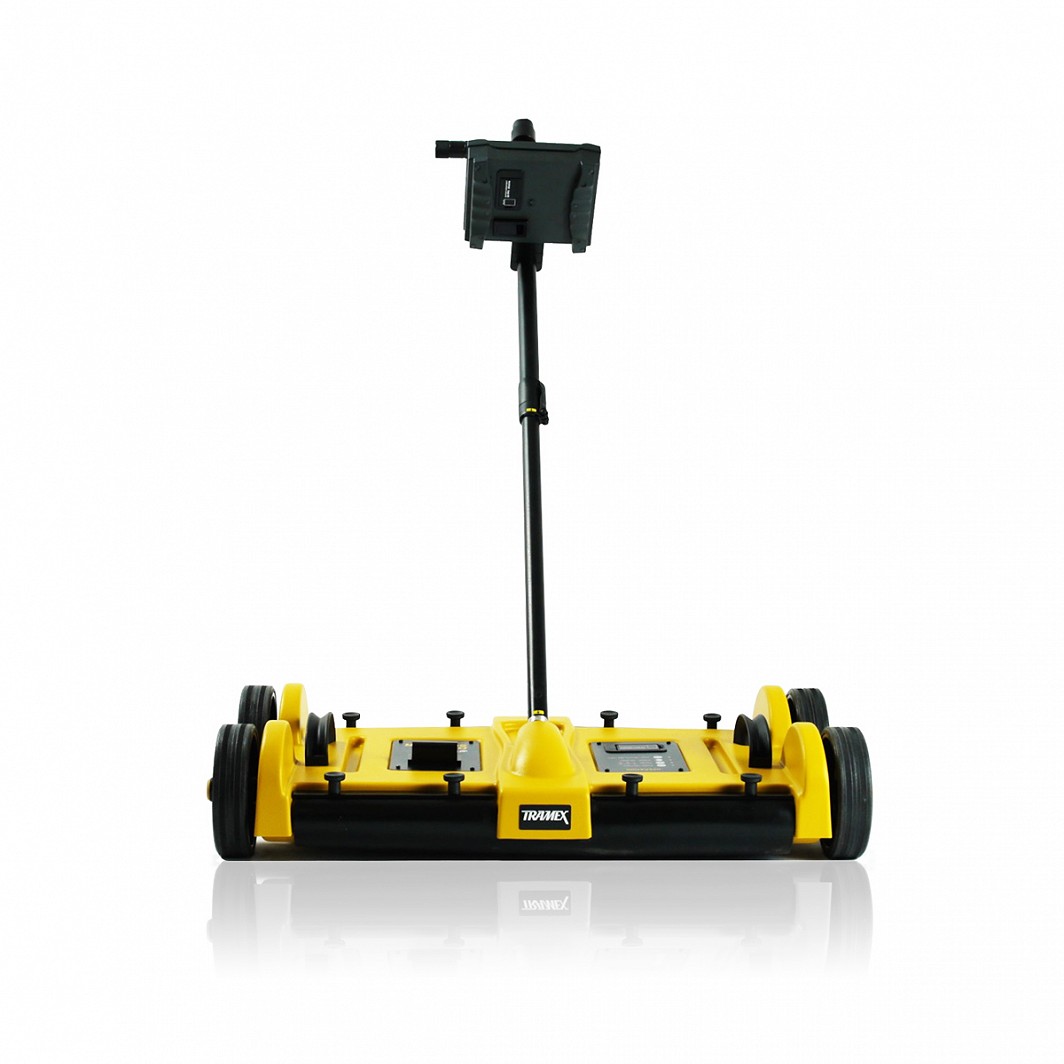

The Tramex Dec Scanner is a mobile non-destructive impedance scanner designed for the instant surveying of moisture conditions in flat roofing and waterproofing systems per ASTM D7954. The Dec Scanner roofing moisture meter detects and measures leaks within the roofing structure. Ideal for water leak detection in roofing materials and integrity testing.

Quantity

Overview

Complies to ASTM D7954
Non-destructive impedance moisture meter.
Three ranges of sensitivity enabling the inspection of a variety of roof membranes and insulation thicknesses.
Ergonomic easy-reach and easy to operate control panel.
Leak tracing, water leak detection, problem sourcing, and an instantaneous and clear indication of roof condition.
Fast readings over large roof areas in a short time frame.
Work in normal daylight hours.
Faster and more user friendly than nuclear meters.
Easy and safe to use with no regulatory restrictions or operating license required.
Dependable solid state circuitry and rugged molded body for long-term reliability.
Battery powered - 9 Volt PP3.
Detect moisture in roofs without tearing them apart.

Specification

Scanning area	609 mm x 394mm (24”W x 15.5”D)
Weight Dec Scanner	9.95 Kg (24.6 lbs)
Display	Analog
Measuring Range	0 to 100
Comparative Max. depth of penetration	152 mm (6”)
