Exotek Instruments

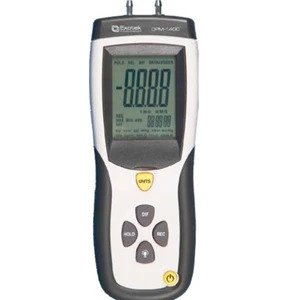

DPM-1400 Pressure Meter For Air And Non Corrosive Gases

ClimatePortable Environmental Meter

The device measures Gauge/Differential Pressure from 0 to 5 psi , it features 11 selectable units of measure: inH20, psi, bar, mbar, kPa, inHg, mmHg, ozin, ftH20, cmH20, kgcm . Additional features include Data Hold. Auto Power Off disabled , and an RS232 for capturing reading to a PC using optional software. Careful use of this meter will provide years of reliable service.

Quantity

Specification

Accuracy	± 0.3% FSO
Repeatability	± 0.2% (Max.+/ -0.5% FSO)
Linearity/Hysteresis	±0.29% FSO
Pressure Range	± 5 psi
Maximum Pressure	20psi
Response Time	0.5 Seconds typical
Low Battery Indicator	Yes
Over range Indicator	Err.1
Under range Indicator	Err.2
Operating Conditions	0 to 50 °C
Storage Conditions	-10 to 60 °C
Power Supply	1×9V Battery or external 9VDC
Serial format	Baud rate: 9600 Baud, 8 Data Bits
