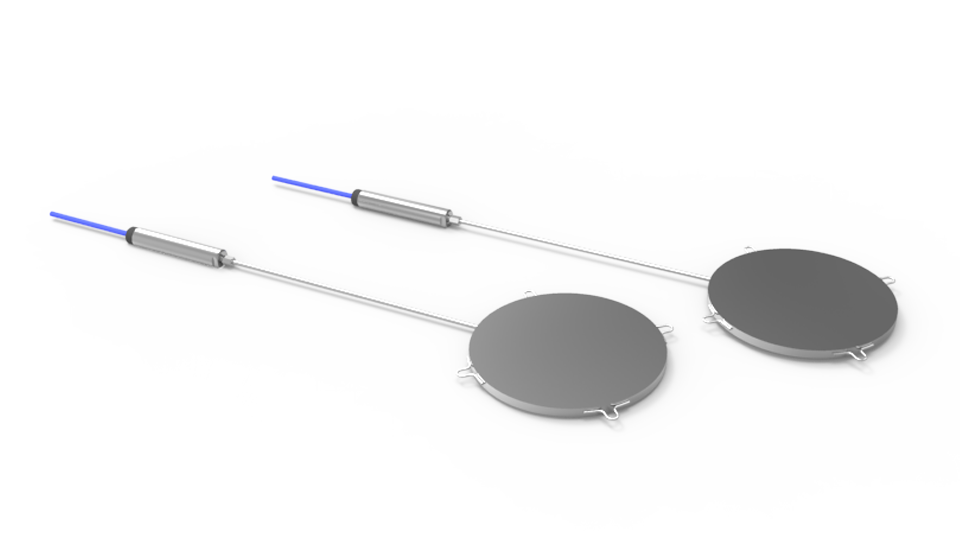

Earth Pressure Cells

InfrastructureGeotechnical Instrumentation

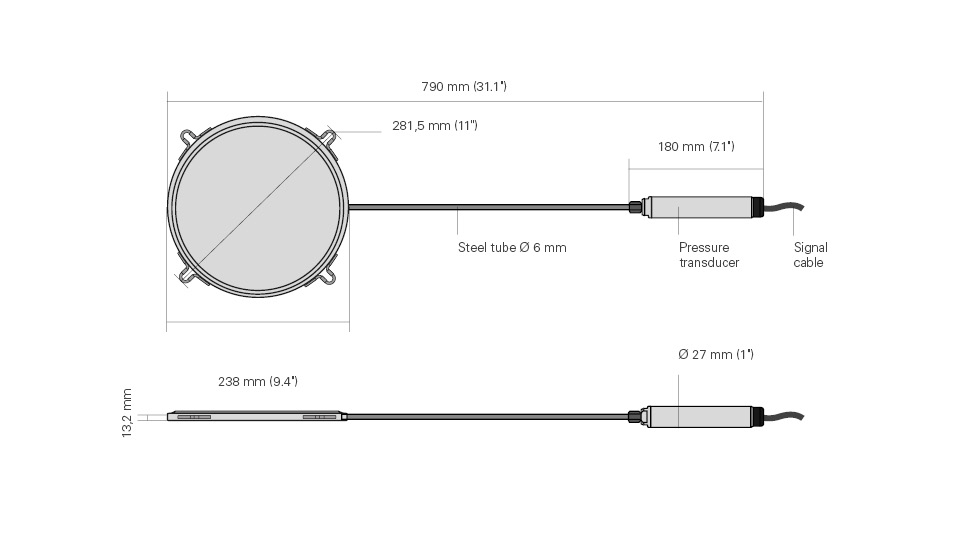

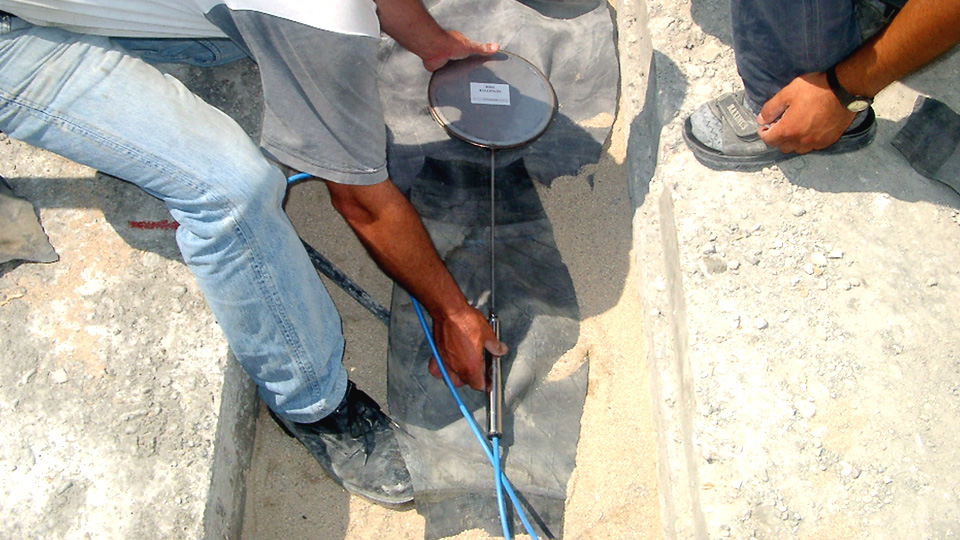

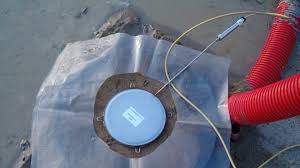

The Earth pressure cells are designed to monitor total pressure in earth fill dams, embankments, and at the interface between structures and soil. Pressure applied to the surface of the pressure cell is transmitted hydraulically to a pressure transducer which can be read with a portable readout or a data logger. More info.↗

Quantity

Specification

Model	L143 MODEL	L141 MODEL
Model description	VW pressure transducer	piezo-resistive pressure transducer
Full scales (FS)	0-350 kPa up to 0-10.0 MPa 0-50 psi up to 0-1450 psi	0-200 kPa up to 0-10.0 MPa 0-29 psi up to 0-1450 psi
Sensitivity	0.03% FS	0.002% FS
Temperature sensor	built-in thermistor
Overload	100% FS	30% FS (FS=200 kPa) 100% FS on request
Pol. MPE	< ±0.25% FS < ±0.1% FS on request	< ±0.20% FS (for 200kPa FS) < ±0.15% FS (all other FS)
Electrical supply		12-40 V DC
Typical frequency range	2250 - 3000 Hz
Output signal	frequency	4-20 mA current loop
Operating temperature range	-20°C +80°C	-20°C +80°C
Material / weight	stainless steel / 0.6 kg	stainless steel / 0.6 kg
