Exotek Instruments

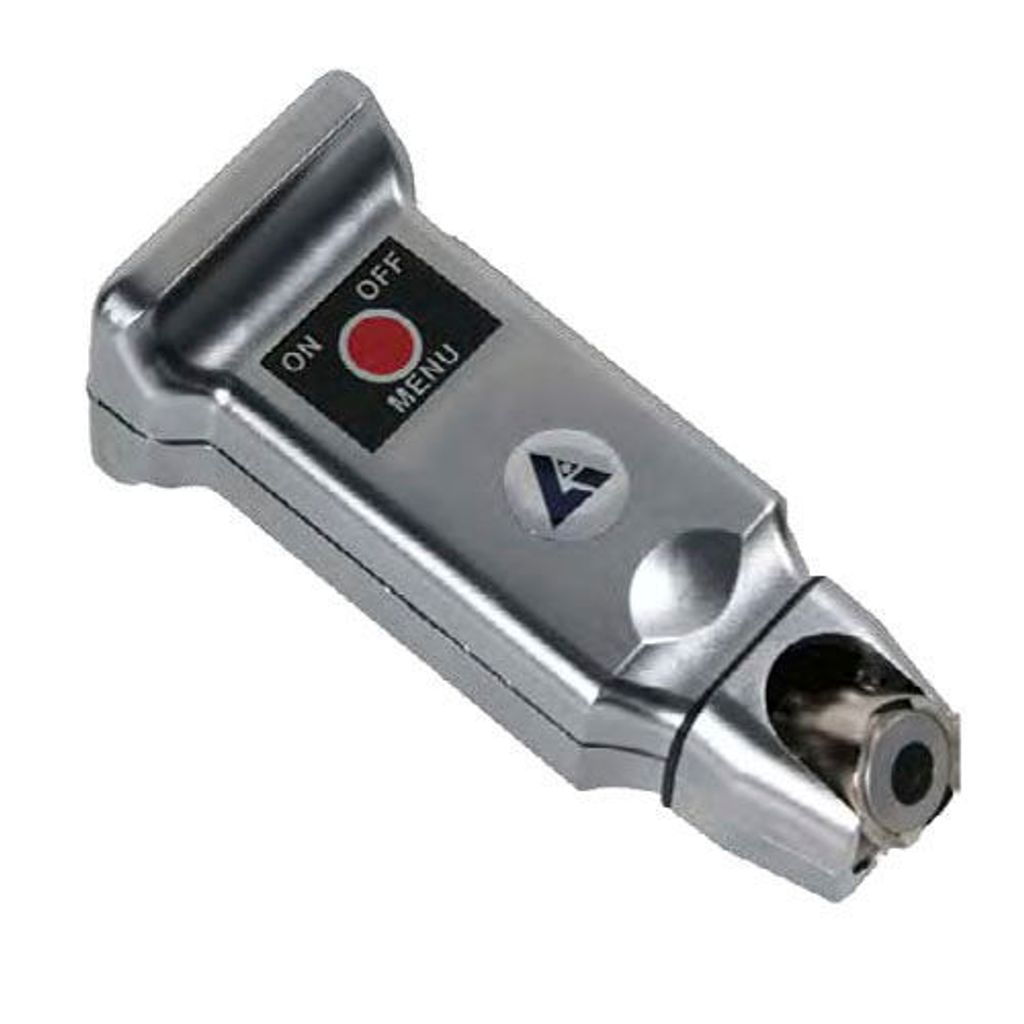

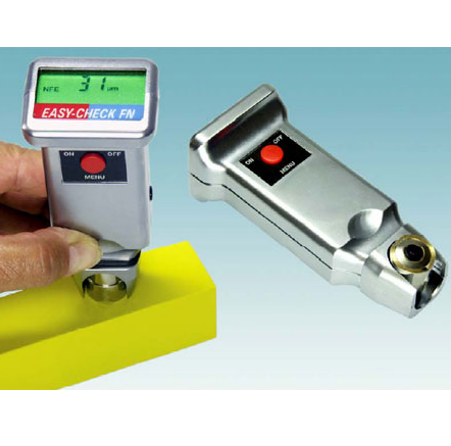

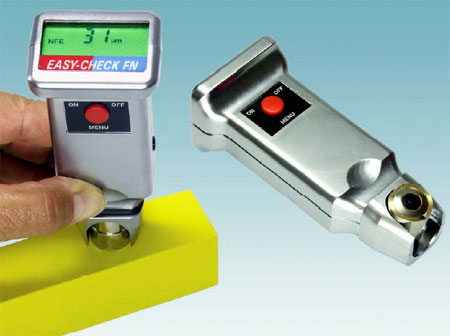

Easy-Check FN

ClimatePortable Environmental Meter

COATING THICKNESS METER FOR FERROUS AND NON-FERROUS METALS

Quantity

1

Overview

80 hours of measurement on a single 1.5 V Mignon battery.
Data Logger capacity 1000 measurements.
Easy to operate.
Display of statistics parameters NO. - MIN - MAX - MEAN and STD. DEV.
Automatic recognition of the base material 90 degree movable probe for hard to reach measurements Comforms to the ISO2360:2003 standard.

Specification

In FE (Ferrous) Mode	Measurement of paint, varnish, plastics and galvanizing on iron and steel
In FN ( Non-Ferrous metals) Mode	Measurement of insulating coatings (paint, varnish, plastics, anodizing) on non-ferrous metals
Measuring Range	FE 0 - 5000 µm NFE 0 - 2500 µm Automatic recognition of the base material
Resolution	< 100 µm : 0,1/1 µm > 100 µm : 1 µm > 1000 µm : 0,01 mm
Accuracy	< 100 µm: ± 1 µm 100-1000 µm: ± 1% 1000-2000 µm: ± 3% > 2000 µm: ± 5%
Display	LCD 3 - digits
Power Supply	1.5V Mignon battery
Size	108 x 48 x 38 mm
Weight	100 g
Features	Interface RS 232 Two-point calibration Automatic switch off Data storage 1000 readings
