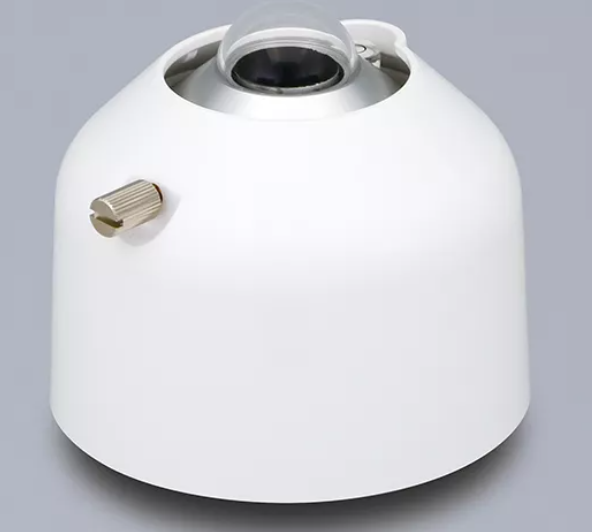

EKO Instruments MS-40 Pyranometer

ClimateMeteorological Station & Sensors

The MS-40 is an ISO 9060:2018 Class C pyranometer, and the most cost-effective irradiance sensor for agro-meteorological networks and professional small-scale PV sites where solar radiation is taken seriously.

Quantity

Overview

The MS-40 is an ISO 9060:2018 Class C pyranometer based on EKO's universal sensor platform. It is the most cost-effective irradiance sensor to measure Solar irradiance across the entire solar spectrum and is designed for agro-meteorological networks and professional small scale PV sites.

Featuring an analog (mV) output, every MS and S-Series Pyranometer, including the MS-40, is compatible with the optional MV-01 ventilator & heater and albedo mounting kit and is manufactured with strict quality controls and performance standards.

EKO provides a unique calibration compliant with the international standards defined by ISO 17025 and IEC 9847.

The sensor also has a two year recommended recalibration interval and no requirement to change the desiccant.

Key Features

Spectrally flat
Analog output
ISO 17025 certified calibration
Optional MV-01 Ventilator & Heater

Comparison

Comparison of EKO Instruments Pyranometers

	MS-40	MS-40S	MS-60	MS-80	MS-80S	MS-80SH	ML-01 SI
ISO 9060:2018	Class C	Class C	Class B	Class A	Class A	Class A	Class C
Response Time 95%	< 18 Sec	< 18 Sec	< 18 Sec	< 0.5 Sec	< 0.5 Sec	< 0.5 Sec	< 1 msec
Wavelength Range	285 - 3000 nm						400 to 1100 nm
Directional response (at 1000W/m² \| 0 to 80°)	± 20 W/m²	± 20 W/m²	± 18 W/m²	± 10 W/m²	± 10 W/m²	± 10 W/m²	< 10 W/m²
Signal Output	N/A	Modbus 485 RTU / 4-20mA / 0-1V	N/A	±10µV/W/m²	Modbus 485 RTU / 4-20mA / 0-1V	Modbus 485 RTU / SDI-12	Analog (mV)
Ingress protection	IP67						Equivalent to IP67 (IEC60529, JIS C0920)
Power Consumption	0W	<0.2W (Digital), <0.7W(Analog)	N/A	0W	<0.2W (Digital), <0.7W(Analog)	< 1.4 W	N/A
Pyranometer Type	Thermopile Pyranometer						Si-Pyranometer
IEC 61724-1:2021	IEC Class C	IEC Class C	-	IEC Class A	-	IEC Class A	IEC Class C
