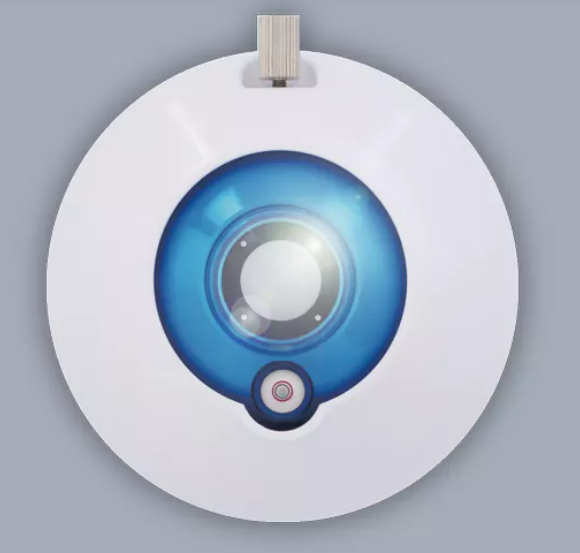

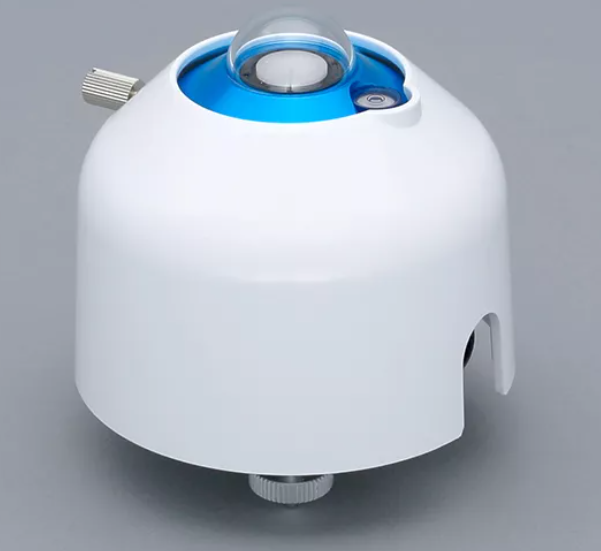

EKO Instruments MS-80S Pyranometer

ClimateMeteorological Station & Sensors

The elite MS-80S Class A pyranometer includes a state-of-the-art thermopile sensor, and new 'S-Series' internal diagnostics system, and 4-channel smart interface.

Quantity

Overview

The MS-80S is an ISO 9060:2018 Class A pyranometer, in the top tier ‘fast-response’ and ‘spectrally flat’ sub-categories, with unprecedented low zero-offset behaviour, fast sensor response, ISO 17025 accredited calibration and a 5-year recalibration interval.

Building on the innovative patented design of the original MS-80, released in 2016, the MS-80S includes a state-of-the-art thermopile sensor, a new internal diagnostics system, and 4-channel smart interface.

The internal diagnostics system offers users visibility over internal temperature, humidity, tilt and roll angle; helping to ensure optimum performance without the need for regular physical checks; while the 4-channel smart signal transducer allows the MS-80S to easily connect to any analogue or digital measuring system, giving users a choice with Modbus 485 RTU for digital output; alongside 4-20mA, and 0-10mA (0-1V) analogue options.

Key Features

<0.5s Super-Fast response for always accurate measurements
<1W/m² Record Lowest Zero Offset A, and <0.5% Lowest Non-Stability over 5-Years
Level A EMI/EMC Electronics Surge Filter & Protection
Internal Diagnostics for temperature, tilt, roll, and relative humidity
Smart 4-channel Analog & Digital Interface
Optional MV-01 Ventilator & Heater

Comparison

Comparison of EKO Instruments Pyranometers

	MS-40	MS-40S	MS-60	MS-80	MS-80S	MS-80SH	ML-01 SI
ISO 9060:2018	Class C	Class C	Class B	Class A	Class A	Class A	Class C
Response Time 95%	< 18 Sec	< 18 Sec	< 18 Sec	< 0.5 Sec	< 0.5 Sec	< 0.5 Sec	< 1 msec
Wavelength Range	285 - 3000 nm						400 to 1100 nm
Directional response (at 1000W/m² \| 0 to 80°)	± 20 W/m²	± 20 W/m²	± 18 W/m²	± 10 W/m²	± 10 W/m²	± 10 W/m²	< 10 W/m²
Signal Output	N/A	Modbus 485 RTU / 4-20mA / 0-1V	N/A	±10µV/W/m²	Modbus 485 RTU / 4-20mA / 0-1V	Modbus 485 RTU / SDI-12	Analog (mV)
Ingress protection	IP67						Equivalent to IP67 (IEC60529, JIS C0920)
Power Consumption	0W	<0.2W (Digital), <0.7W(Analog)	N/A	0W	<0.2W (Digital), <0.7W(Analog)	< 1.4 W	N/A
Pyranometer Type	Thermopile Pyranometer						Si-Pyranometer
IEC 61724-1:2021	IEC Class C	IEC Class C	-	IEC Class A	-	IEC Class A	IEC Class C
