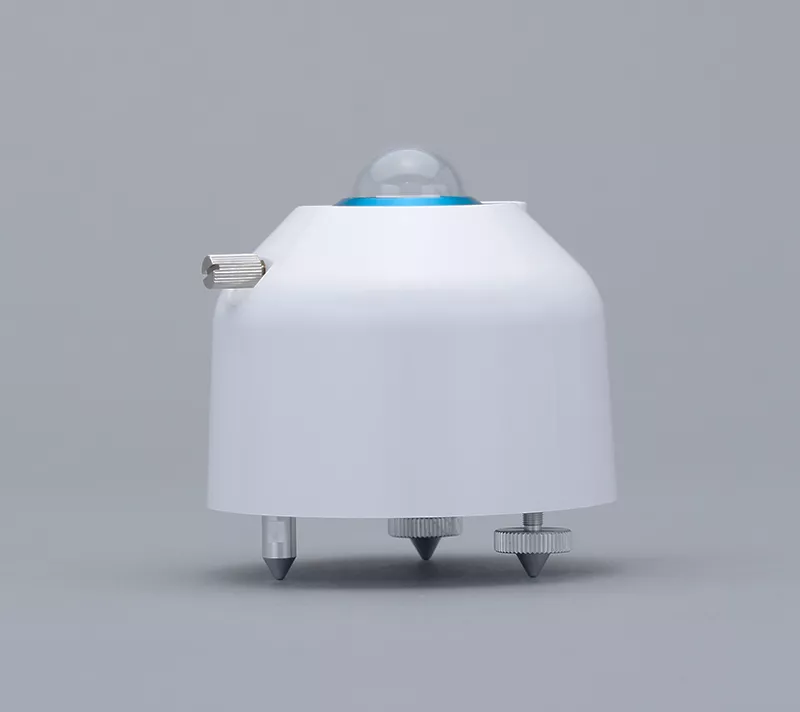

EKO Instruments MS-80SH Pyranometer
With integrated high-efficiency dome heating, the MS-80SH is the new standout choice for value, accuracy, speed, reliability and IEC 61724-1:2021 Class A monitoring, ISO 9060:2019 Class A pyranometer and ISO 17025 accredited.
Overview
Features
- ISO 9060:2018 Class A, Spectrally Flat & Fast Response
- <0.5s super fast response for always accurate measurements
- <1W/m2 record lowest zero offset A and <0.5% lowest non-stability over 5 years
- 5 year recommended recalibration interval
Key Features
- Integrated 1.4W solid-state dome heating to prevent dew, frost, and snow
- <0.5s fast thermopile response (95%) for accurate, real-time irradiance
- Ultra-low zero offset with patented sealed thermopile sensor
- Internal diagnostics: temperature, humidity, tilt, and roll
- Smart digital interface supporting Modbus 485 RTU & SDI-12
Comparison
Comparison of EKO Instruments Pyranometers
| MS-40 | MS-40S | MS-60 | MS-80 | MS-80S | MS-80SH | ML-01 SI | |
| ISO 9060:2018 | Class C | Class C | Class B | Class A | Class A | Class A | Class C |
| Response Time 95% | < 18 Sec | < 18 Sec | < 18 Sec | < 0.5 Sec | < 0.5 Sec | < 0.5 Sec | < 1 msec |
| Wavelength Range | 285 - 3000 nm | 400 to 1100 nm | |||||
| Directional response (at 1000W/m² | 0 to 80°) | ± 20 W/m² | ± 20 W/m² | ± 18 W/m² | ± 10 W/m² | ± 10 W/m² | ± 10 W/m² | < 10 W/m² |
| Signal Output | N/A | Modbus 485 RTU / 4-20mA / 0-1V | N/A | ±10µV/W/m² | Modbus 485 RTU / 4-20mA / 0-1V | Modbus 485 RTU / SDI-12 | Analog (mV) |
| Ingress protection | IP67 | Equivalent to IP67 (IEC60529, JIS C0920) | |||||
| Power Consumption | 0W | <0.2W (Digital), <0.7W(Analog) | N/A | 0W | <0.2W (Digital), <0.7W(Analog) | < 1.4 W | N/A |
| Pyranometer Type | Thermopile Pyranometer | Si-Pyranometer | |||||
| IEC 61724-1:2021 | IEC Class C | IEC Class C | - | IEC Class A | - | IEC Class A | IEC Class C |
Downloads
| ps_ms-80sh_-eng-08-2022 | Downloadps_ms-80sh_-eng-08-2022 |
|---|
