SEBA Hydrometrie

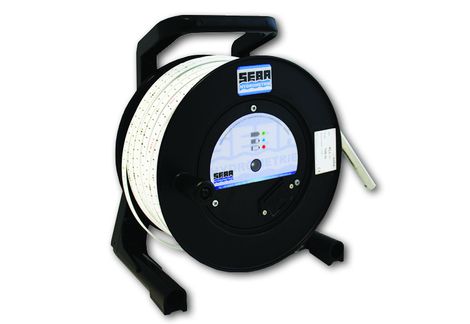

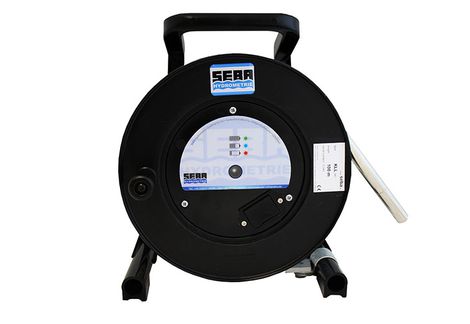

Electric Contact Meter Type KLL-Light

WaterLevel Measurement & Monitoring

Affordable, portable hand-held device for determining the current water level to a depth of 200 meters

Quantity

Overview

All inclusive:
Other than the affordable cost, SEBA KLL-Light Electric Contact Gauge is characterised by its lightweight supporting frame made of high-strength polycarbonate with a comfortable grip, and a LED battery status indicator. The device is equipped with a a contact meter (sensing device) activated on contact with water, which sends both an optical and an acoustic signal. Like all SEBA- electric contact gauges, the KLL Light is also equipped with a robust, low-wear and therefore long-lasting ribbon cable with easily legible numbering.

Accessories Options:

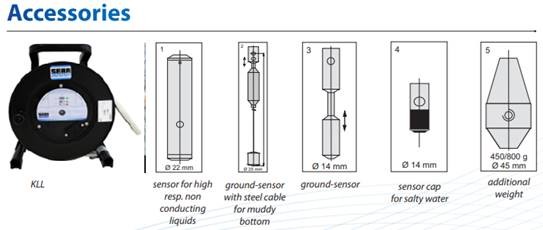

Accessories

Specification

Water Level

Sensor	Vertical
Measurement Principle	Electric contact

Housing (Vertical)

Material	Stainless steel, nickel-plated brass tip
Dimension	Ø14mm, length: 175mm
Protection Class	IP68

Electronic Water Level Gauge

Support Frame	Impact-resistant, UV-resistant polycarbonate
Cable Drum	Impact-resistant, temperature-resistant plastic LED for battery status display
Protection Class	IP51

Cables

Length	0-15/30/50/80/100/150/200m
Material	2-core flat cable, polyethylene with stainless steel braids and a copper core
Scaling	black cm-division, dm-numbering, red meter figures
Accuracy	<1 cm (KLL 100m)
