SEBA Hydrometrie

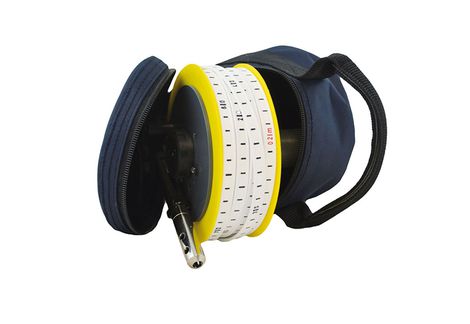

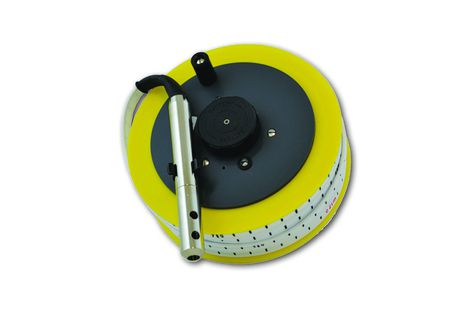

Electric Contact Meter Type KLL-Mini
WaterLevel Measurement & Monitoring

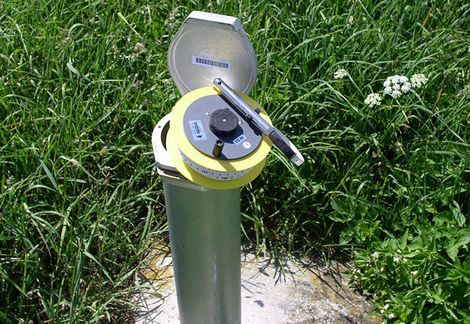

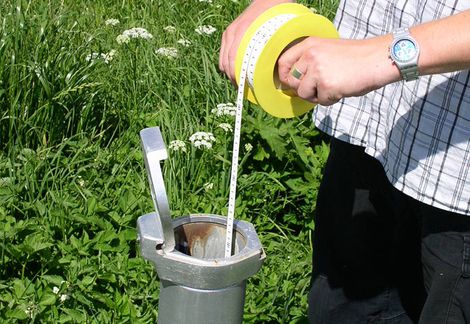

The KLL-Mini is specifically designed for shallow groundwater monitoring wells with a 10 m or 15m measurement range. It is by no means inferior to its big brothers, neither qualitatively or functionally (KLL, electric water level gauge, KLL-Light), but owing to the compact design, it is much lighter and easier to handle. The KLL-Mini comes standard with visual and audible signal. The two 1.5V batteries power the handset for approximately 250 measurements.
Quantity
1
Specification
Water Level
| Sensor | Vertical |
|---|---|
| Measurement Principle | Electric Contact |
Housing (Vertical)
| Material | Stainless steel, nickel-plated brass tip |
|---|---|
| Dimensions | Ø14mm, length: 175mm |
| Protection Class | IP68 |
Electronic Water Level Gauge
| Cable Drum | Flexible, temperature-resistant plastic |
|---|---|
| Dimensions | Ø140mm |
| Protection Class | IP54 |
Cables
| Length | 10m, 15m |
|---|---|
| Material | 2-core flat cable, polyethylene with stainless steel braids and a copper core |
| Scaling | Black cm-division, dm-numbering, red meter figures |
| Accuracy | <1cm |
Others
| Power Supply | 2x 1.5V alkaline manganese batteries |
|---|---|
| Operating Temperature | -15°C - 50°C |
| Weight |
KLL-Mini 10m: 550g KLL-Mini 15m: 600g |
Downloads
| B02_KLL_Electric_Contact_Meters_e_1 | DownloadB02_KLL_Electric_Contact_Meters_e_1 |
|---|
